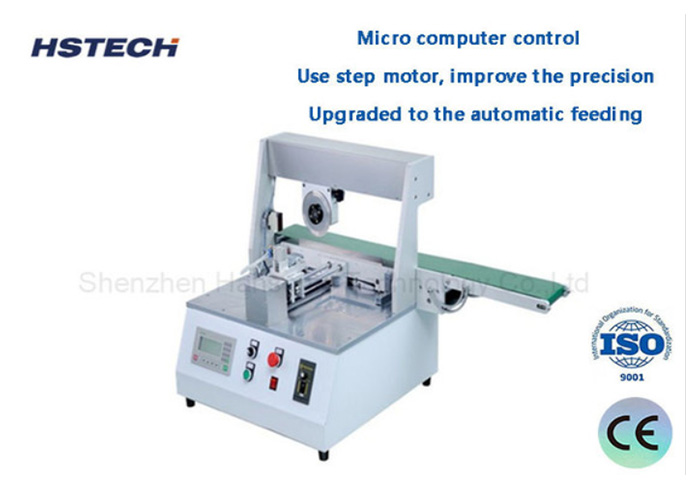

Automatic Blade Moving Mini PCB Depaneling Equipment With PLC Control System

Introduction:

This automated PCB separation system boasts an integrated automatic feeding mechanism. It employs a unique design that combines an upper rotating circular blade with a lower stationary linear blade. Throughout the depaneling process, the PCB is held securely in position as the circular blade spins, effectively accomplishing the separation task with precision.

Advantages:

The traditional PCB separator, which depends on manual handling, is not only inefficient but also labor-intensive. Conversely, the revamped automatic PCB separator revolutionizes the process. Its microcomputer-controlled auto-feeding system seamlessly adapts to various board sizes and integrates effortlessly with loaders. This innovation minimizes labor requirements, boosts productivity, automates workflows, and optimizes output.

The main features are as follows:

Autonomous PCB Separation:

This machine autonomously manages the entire PCB separation process, from input to cutting to output, ensuring smooth and seamless automation.

High-Speed Cutting Performance:

Equipped with high-speed CNC tools, it rapidly separates boards, achieving multiple cuts per minute for enhanced productivity.

Precision Cutting Precision:

High-precision sensors and servo motor control ensure board separation accuracy within ±0.05mm, guaranteeing impeccable cutting results.

Automated Material Handling System:

The integrated silo and conveyor belt system automate the feeding and unloading of PCB boards, optimizing the overall process efficiency.

Intelligent Control System:

Based on PLC technology, this system allows for customizable separation schemes for various board sizes and includes fault self-diagnosis capabilities for proactive maintenance.

User-Friendly Interface:

The intuitive design makes operation straightforward, while the compact structure facilitates easy maintenance, thereby extending the equipment's lifespan.

Main features
Automated operation
The automated system enables rapid separation of PCBs, reduces manual operations, and improves production efficiency.

Precise cutting
The blade movement technology is used to accurately separate PCBs along the V-Cut gap to ensure cutting quality and integrity.

High efficiency
Able to process a large number of PCBs in a short time, suitable for large-scale production needs.

User-friendly interface
Equipped with an operation panel and display for easy monitoring and setting, the operation is simple and intuitive.

Safety design
Equipped with multiple safety protections to prevent accidental start-up or operation, ensuring the safety of operators.

Adjustable cutting parameters
Users can adjust the cutting depth and pressure according to the thickness and material of different PCBs.
