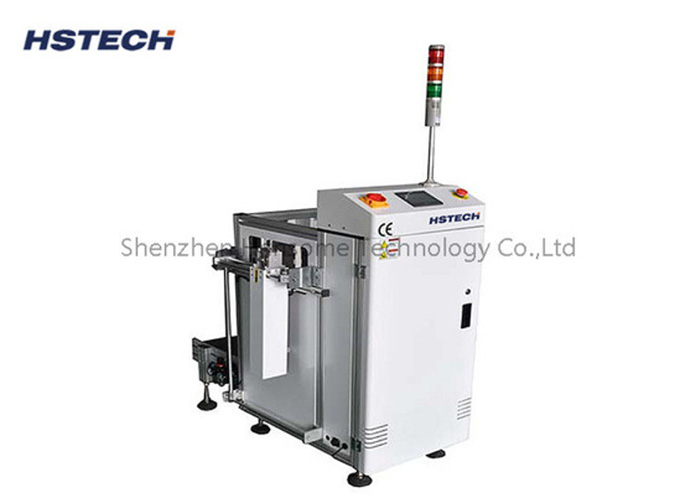

    Specialized 90 Degree PCB Loader With Aluminum Profile Guide Rail And Houndstooth Chain

    90 Degree PCB Loader with Customizable Conveyor Speed for SMT Production

    Application

    The board loading machine stands as a pivotal element in SMT production lines, automating the PCB board loading process to bolster productivity and uphold quality uniformity. Widely adopted in the electronic manufacturing industry, it plays a crucial role in ensuring seamless and efficient production flows.

    Specification

    Product name90 degree PCB Loader Machine
    Machine length1200mm or 900mm
    Transport height910±30mm
    PCB loading timeApprox 6 seconds
    Magazine replace timeApprox 30 seconds
    Magazine qty3 pcs
    Transportation directionL~R, or R~L
    OperationFront operation
    Track fixed sideFront side(or specify)
    Power supply220V,50/60Hz,±10%
    Air pressure4-6bar
    PCB thicknessMin 0.4mm
    Magazine qtyUpper side:1 pc,bottom side: 2 pc
    Pitch selection1-4(10mm pitch)
    Conveyor speed0.5-20M/min or customized
    Light status3 color display
    SignalSMEMA


    Features


    1. Features a specialized aluminum profile guide rail and an exclusive Houndstooth plastic chain, ensuring precision and durability.
    2. Equipped with a powerful 90W brake motor, it utilizes a ball screw mechanism for smooth and controlled magazine movements, both ascending and descending.
    3. Incorporates a robust pneumatic clamping structure that securely holds the board in place, ensuring stability during operation.
    4. Comes standard with 3 magazines – 1 top and 2 bottom, optimizing workflow and enhancing efficiency.
    5. Offers flexibility in movement direction, accommodating both right-to-left and left-to-right configurations to suit various production layouts.
    6. Provides customizable pitch options for the lifting platform, including 10, 20, 30, or 40, ensuring precise alignment and adaptability.
    7. Controlled by a reliable PLC (Programmable Logic Controller), it offers robust automation and programming flexibility to meet diverse production needs.
    8. Equipped with an automatic loading function, it streamlines the production process, reducing manual intervention and enhancing productivity.
    9. Pneumatic components feature adjustable push plate cylinder positions, facilitated by a precision screw, allowing for fine-tuning and precise positioning.
