    Double-Head Screw Fastening Machine with Hand-Held Screwdriver and Flexible Operation

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : HS-SL5331
    Certification : CE
    Price : Negotiable
    Payment Terms : D/P, T/T, Western Union, MoneyGram
    Supply Ability : 50 sets per month
    Delivery Time : 10~14 work days
    • Product Details
    • Company Profile

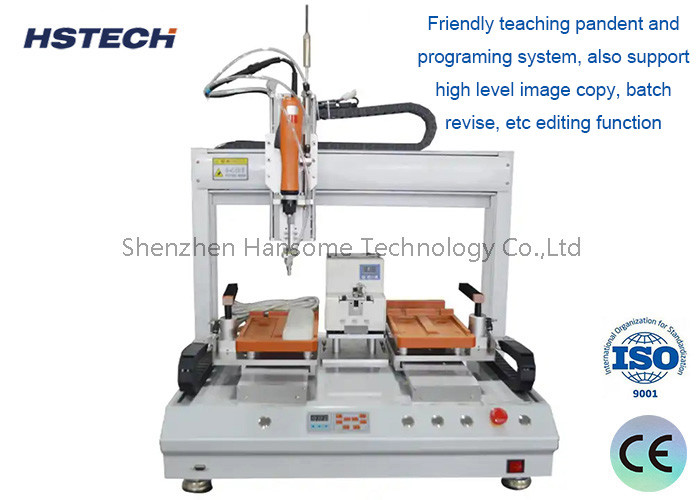

    Double-Head Screw Fastening Machine with Hand-Held Screwdriver and Flexible Operation

    Double-Head Screw Fastening Machine with Hand-Held Screwdriver and Flexible Operation


    Products Description

    Automatic Screw Locking Machine:


    ◎ Double Y-axis platform, locking screws alternately from left to right;

    ◎ Automatic absorption screw, automatic tightening screw

    ◎ Continuous feeding, which can provide screw counting function and leak proof function

    ◎ Constant torque, with screw sliding, floating lock and alarm functions

    ◎ Three axis linkage, high locking efficiency

    ◎ Light electric screwdriver sleeve, accurate and convenient torque adjustment, ensuring locking quality

    ◎ One hand locking operation: easily lower the piezoelectric screwdriver to complete the screw locking operation.

    ◎ Screw supply is fast and reliable, and can be locked in any direction.

    ◎ Strong versatility, hand-held screwdriver, flexible operation, suitable for operation at random points


    Basic principle:
    Adopt motor-driven screw transmission and locking mechanism.
    Use automatic control system to accurately locate and lock screws.
    Can detect screw installation status and perform feedback control.


    Main application scenarios:
    Widely used in assembly production lines such as mechanical equipment and electronic products.
    Suitable for screw locking of various electronic products such as mobile phones, computers, and home appliances.
    Can also be used in product assembly processes in industries such as automobiles and furniture.


    Workflow:
    After the product is positioned at the specified position, it automatically grabs and feeds the screws.
    Use automatic screwdriver to accurately locate and lock the screws.
    Detect the quality of screw installation and perform real-time feedback control.


    Model
    HS-SL5331
    Dimensions
    830*650*800mm
    Working range
    X500*Y300*Z100mm(Customized)
    Max.speed
    0-800mm/s
    Repeat accuracy
    ±0.02mm
    Display model
    Teaching pendant LCD(320*240) or touch screen
    Motor system
    precision micro-stepper motor
    Drive mode
    timing belt + screw rod +guide rail
    power
    AC110V/220V 300W(internal switch)
    Edit model
    Teach pendant
    Working environment Humidity
    20-90%
    Weight
    Approx. 60KGS

    Double-Head Screw Fastening Machine with Hand-Held Screwdriver and Flexible Operation

    Packing & Delivery
    Item
    Screw Locking Machine
    Package
    1 set into one wooden carton as safety condition
    External Dimension
    660mm x 550mm x 900mm
    Weight
    about 75kgs
    Delivery
    about 20 working days
    Payment
    D/P, T/T, Western Union, MoneyGram
    Port
    Shenzhen
    Shipment
    A.By Courier: 4-7 Working days by special offer
    B.By Air: 7 Working days at appointed airport
    C.By Sea: 20-25 Working days at appointed port
