    Approx 30 Seconds PCB Unloader Button Control Customized SMT Line Unloader With Motor Driven

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : HS-UD330
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 7~9 work days
    • Product Details
    • Company Profile

    Approx 30 Seconds PCB Unloader Button Control Customized SMT Line Unloader With Motor Driven

    Approx 30 Seconds PCB Unloader Button Control Customized SMT Line Unloader With Motor Driven


    Products Description

    PCB Unloader:

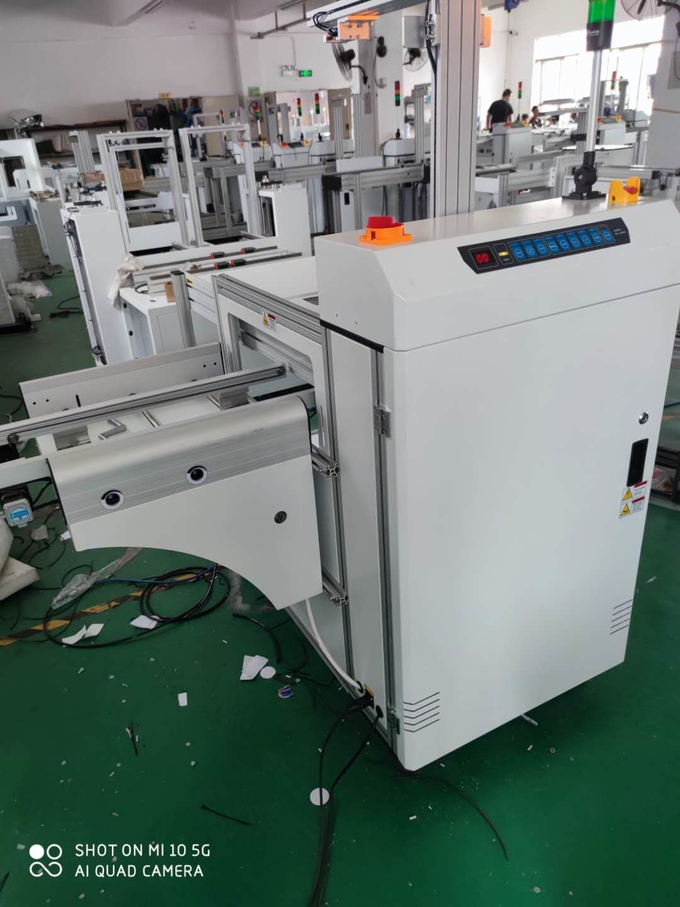

    This PCB unloader machine used in the end of SMT production line,it used for collecting PCBs into the magazines.


    PCB unloader is a device used to automatically unload printed circuit boards (PCBs). Its main function is to automatically remove PCBs from the equipment used in the previous process (such as welding machines, testers, etc.) on the production line and place them on a tray or pallet. PCB unloader can improve production efficiency, reduce labor costs and operational errors.


    The main features are as follows:


    High degree of automation: Through computer control and automation technologies such as robotic arms, PCBs can be unloaded quickly and accurately. Greatly improve the unloading efficiency.


    Strong adaptability: It can automatically adjust according to PCBs of different sizes and thicknesses to adapt to various types of circuit boards.


    Good integration: It can be integrated with the previous process equipment to achieve automated collaboration of the production line.


    Simple operation: Equipped with a human-machine interface, the operator can complete the unloading task through simple program settings.


    High reliability: It adopts a stable mechanical structure and control system with good repeatability and service life.


    Cost saving: Reduce manual operation, reduce labor costs, and improve production efficiency.


    Improve product quality: The precise unloading process can minimize the damage of PCBs during the transfer process.


    Features:


    1, Mitsubishi PLC

    2, ZD motor driven.

    3, Thicker transporting conveyor belt.

    4, 3 magazines for changing over, top side one magazine, button side 2 magazines.

    5, LED button control mode with 3 lolor light display.

    6, Stainless steel and aluminum profile machine structure, stable and easy for maintenance.

    7, Smooth and parallel width adjustment with hand crank.

    8, Precision pusher push the pcbs to the magazines

    9, Top and bottom pneumatic clamps to secure magazine rack.

    10, SMEMA compatible.


    Specification:


    FunctionThis unit is used for unloading the PCBs.
    Transport height910±30mm
    PCB loading timeApprox 6 seconds
    Magazine change over timeApprox 30 seconds
    Transportation directionL~R, or R~L
    OperationFront operation
    Track fixed sideFront side(or specify)
    Power supply220V,50/60Hz,±10%
    Air pressure4-6bar
    PCB thicknessMin 0.4mm
    Magazine qtyUpper side:1 pc,bottom side: 2 pc
    Conveyor speed0.5-20M/min or customized
    Pitch selection1-4(10mm pitch)
    SignalSMEMA

    ModelHS-UD250HS-UD330HS-UD390HS-UD460
    Efficient PCB length50*50~350*250mm50*50~455*330mm50*50~530*390mm50*50~530*460mm
    Machine dimension1900*800*1200mm2320*880*1200mm2620*940*1200mm2620*1080*1200mm
    Magazine size355*320*563mm460*400*563mm535*460*570mm535*530*570mm
    Weight140kg220kg280kg320kg

    Mitsubishi PLC ZD Motor Driven 3 Magazines LED Button PCB Link Unloader 330mm Width 0Mitsubishi PLC ZD Motor Driven 3 Magazines LED Button PCB Link Unloader 330mm Width 1

    Mitsubishi PLC ZD Motor Driven 3 Magazines LED Button PCB Link Unloader 330mm Width 2Mitsubishi PLC ZD Motor Driven 3 Magazines LED Button PCB Link Unloader 330mm Width 3


    Packing & Delivery
    Item
    PCB Unloader
    Package
    1 set into one wooden carton as safety condition
    External Dimension
    1900*1200*800mm
    Weight
    about 140-320kgs
    Delivery
    about 15-20 working days
    Payment
    D/P, T/T, Western Union, MoneyGram
    Port
    Shenzhen
    Shipment
    A.By Courier: 4-7 Working days by special offer
    B.By Air: 7 Working days at appointed airport
    C.By Sea: 20-25 Working days at appointed port
