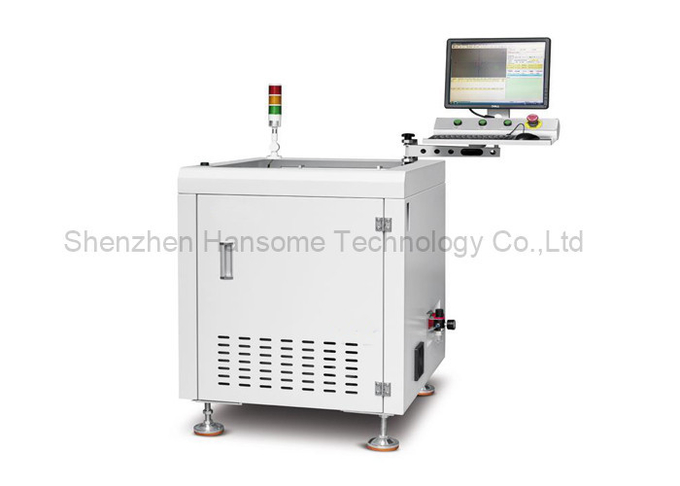

High Speed Mini Offline PCBA Router Machine for Small Size PCB with
Flexible Cutting
Introduction:
It is a routing machine specially used for small batch or personal
PCBA manufacturing, mainly used for accurate cutting and
segmentation of PCB with mounted components. It realizes high
precision and repeatability processing through CNC control.
Features:
1, Offline automatic separating.
2, It's a mini PCBA router, suitable for small size PCB, and
factory room saving requirement solution.
3, Customized fixtures.
4, PC and CCD visual system.
5, Programming with compensation and dust collection.
6, Available for max 410-510mm size PCBA.
7, Flexible for cutting two differenct type products.
8, Open platform for manual feeding and unloading, also can
equipped with optional mechanical arm(robot).
Specification:
| Model | AR-7 | AR-7 mini |
| Power supply | AC380V, 50/60Hz, 3KW |
| Working size | 50x50~410x460mm(max) | 50x50~260x310mm(max) |
| Loading mode | Manual |
| Cutting spindel/speed | 5000~60,000 rpm |
| PCB thickness | 0.4-4mm |
| Separating speed | 1-100mm/s |
| Cutting accuracy | ±0.05mm |
| Fixing type | Fixtures |
| Programing | Visioin teaching, inline programing |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel |
| Dust collection method | Bottom dust collection |
| Dust collector | 3 phase, 380V, 1.2KW |
| Noise | <75dB |
| Control system | Industrial PC |
| Spindle brand | Germany brand, Sycotec 4025 |
| Servo motor | A5 series |
| Motion control | 4 axis motion control board |
| Lead screw | C5 grinding screw lead |
| Linear guide | P rank silence guide |
| Camera | Germany brand Imaging 40W industril camera |
| Machine size | 700*800*930 mm | 500*650*930mm |
| Screen | 17inch |
Typical application scenarios:
Personal or small electronic DIY production, such as making your
own PCB circuit board.
Small batch PCBA production, suitable for rapid prototyping and
small batch trial production.
Cutting and splitting PCB when repairing or modifying electronic
products.
Teaching laboratory, let students understand PCBA processing
technology.
Item | PCBA Router Machine |
Package | 1 set into one wooden carton as safety condition |
External Dimension | 700*800*930mm |
Weight | about 75-100kgs |
Delivery | about 20 working days |
Payment | D/P, T/T, Western Union, MoneyGram |
Port | Shenzhen |
| A.By Courier: 4-7 Working days by special offer |
B.By Air: 7 Working days at appointed airport |
C.By Sea: 20-25 Working days at appointed port |
