    Automatic Screw Fastening Machine With Omron Photoelectric Switch For M1-M6 Screws

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : HS-SL551S
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 7~9 work days
    • Product Details
    • Company Profile

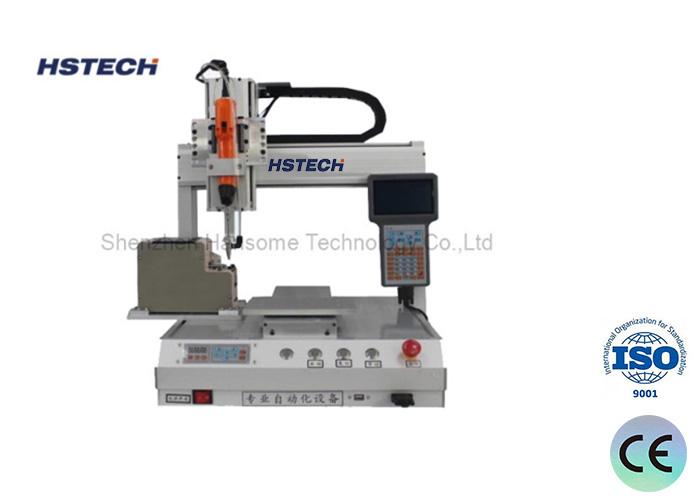

    Automatic Screw Fastening Machine With Omron Photoelectric Switch For M1-M6 Screws

    Screw Fastening Machine and Stability Omron Photoelectric Switch 500*500*100mm 50/60Hz
    Introduction
    This Screw Fastening Machine combines a feeder and a locking system in one, and its feeding part (i.e. screw arranger or feeder) not only optimises the screw arranging process, but also significantly improves the working efficiency. As a widely used automation machine in the electronics industry, it is particularly suitable for handling screws from M1 to M6.
    Specification
    ModelHS-SL551SHS-SL661S
    Production nameAutomatic Screw Locking Machine
    Moving range(X/Y/Z)500*500*100mm600*600*100mm
    X/Y axis moving speedClosed loop motor :1-800mm/s
    Z axis moving speedClosed loop motor: 1-300mm/s
    X/Y axis max loadClosed loop motor: 5KG
    Z axis max loadClosed loop motor: 3KG
    Power supplyAC110V/220V, 50/60Hz
    Repeat accuracy±0.02mm
    Document supportCAD CorelDraw
    Suitable screwsM1-M5
    Machine dimension746*785*800mm845*885*800mm
    Machine weight50kg55kg

    Main parts brand


    1, Motor: Shinano

    2, Guide: Hiwin

    3, Photoelectric switch: Omron

    4, Power supply: Meanwell


    Features


    1. High-efficiency suction screw feeding for enhanced efficiency.
    2. Desktop visualisation operation, compatible with automatic line.
    3. Move range optional: 500x500x100mm/600x600x100mm.
    4.Support multi-screw suction.
    5. Wide range of application.
    6. Can be equipped with multi-axis, double platform and other devices.
    7. Multiple editing, copying programme and other functions.
    8. Offline download parameters, support manual control handle storage call.
    9. Powerful storage capacity, support hundreds of files, each file up to 1000 screw bits.
