Panasonic PLC Controlled PCB Reject Conveyor PCB Handling Equipment for Unqualified PCB Classification

Introduction

PCB Reject Conveyor is a transmission device specially used to handle unqualified printed circuit boards (PCBs) that have been tested or inspected.

The main functions are as follows:

Basic structure:
Automation equipment composed of conveyor belt, drive motor, sensor and other components.
The conveyor belt can be set horizontally or inclined, depending on actual needs.
Equipped with electronic sensors or mechanical switches to detect and distinguish qualified/unqualified circuit boards.

Main features:
High degree of automation: no human intervention is required to realize automatic transmission of circuit boards.
Improved efficiency: greatly reduce manual operation time and labor intensity.
Reduced errors: avoid manual operation errors through automatic detection and classification.
Strong adaptability: can handle circuit boards of various sizes and structures.
High reliability: the equipment has a simple structure and stable and reliable operation.

Working principle:
When unqualified circuit boards are detected on the production line, the sensor signal is triggered.
The control system drives the conveyor belt to automatically transfer the unqualified circuit boards to the designated area.
Qualified boards continue to maintain the original transmission path to achieve automatic sorting.
Unqualified boards are sent to the scrap area or rework area for subsequent processing.

Application scenarios:
Widely used in the quality inspection link of PCB manufacturing of various electronic products.
It can be used in conjunction with AOI, ICT and other inspection equipment to achieve fully automatic sorting.
It can also be used alone to convey waste products in PCB rework lines or panel separation lines.

Features

1, Reject, inspect and by-pass modes all available.

2, Modular design.

3, Stability enhanced by robust design.

4, Laser carved stainless steel side guide for superior quality and durability.

5, Ergonomic design arm rest.

6, Smooth and parallel width adjustment(lead screw).

7, Different lengths available upon request.

8, Variable speed control.

9,SMEMA compatible.

Specification

Transporting rail

Lifting Sturcture

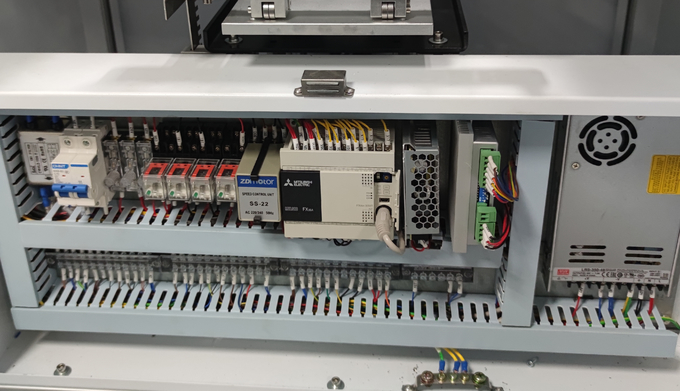

Electric control
