    30W SMD Components Counter LCD Screen Optional Label Printer SMD Chip Counter

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : HS-PC800
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per week
    Delivery Time : 7~9 work days
    • Product Details
    • Company Profile

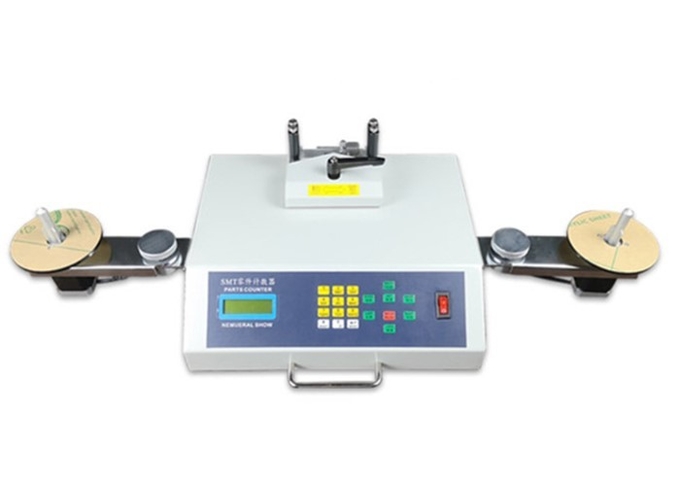

    30W SMD Components Counter LCD Screen Optional Label Printer SMD Chip Counter

    30W SMD Components Counter LCD Screen Optional Label Printer SMD Chip Counter


    Products Description

    SMD Companents Counter:


    Purpose:
    SMD component counters are specialized devices used to accurately count and verify the number of surface mount electronic components.
    They are an essential tool in the electronics manufacturing and assembly process to ensure the correct number of components are available for production.


    How it works:
    SMD component counters typically use optical or mechanical sensors to detect and count individual components passing through the equipment.
    Components are fed into the counter manually or automatically, and the system accurately counts the number.


    Automated Counting Systems:
    Some SMD component counters are integrated into automated systems, such as component feeders or pick-and-place machines.
    These systems can automatically detect, count, and track components during the assembly process, reducing the need for human intervention.


    Data Management and Traceability:
    Many SMD counters offer data logging and connectivity capabilities, allowing users to record component counts, track inventory, and generate reports for quality control and process optimization.


    Applications:
    Electronic Manufacturing: Ensure accurate component counts for surface mount assembly, inventory management, and production planning.
    Contract Manufacturing: Verify component counts for outsourced electronic assembly services.
    Repair and Maintenance: Calculate the number of replacement components required for repair and refurbishment of electronic equipment.

    Features

    1.Easy to eperate,both positive and negative can be counted,zero error.
    2.Able to preset the parts number,convenient for parts counting,feeding and picking up.A
    3.Counting speed can be ajustable,improve the efficiency,meet the different size tape.
    4.Optional label printer and barcode scanner.
    5.The counter use drafting LCD screen. Small size, light weight, easy to carry
    6.Use patent reflector,humanized operation platform.
    7. Fully control the components in the factory, avoid mistakes.


    Specification

    ModelHS-PC800
    Power supplyAC110V,AC220V, 50/60Hz
    Wattage30W
    Counting time19 seconds to 2 min
    Counting range-59999~59999
    Pitch size2,4,8,9,10,12,16,24,32mm
    Tape width8,12,16,24,32,44,56,72,88 m
    Plastic reel size7-13 inch
    ApplicationSuitable for all components
    Product size450*270*180mm
    Package size460*280*190mm
    Gross weight8kg

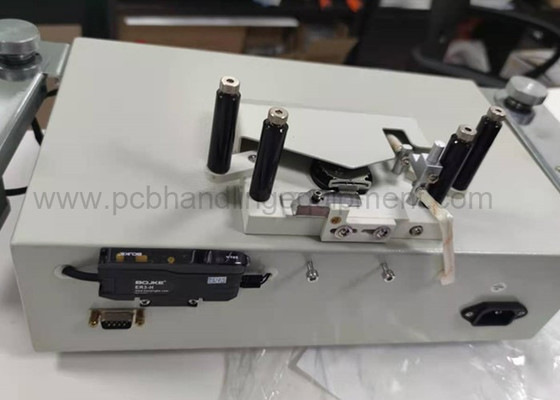

    7-13 Inch Reel Chip SMD Component Counter Zero Error 30W Light Weight 0

    7-13 Inch Reel Chip SMD Component Counter Zero Error 30W Light Weight 1

    30W SMD Components Counter LCD Screen Optional Label Printer SMD Chip Counter30W SMD Components Counter LCD Screen Optional Label Printer SMD Chip Counter


    Packing & Delivery
    Item
    SMD Components Counter
    Package
    1 set into one wooden carton as safety condition
    External Dimension
    45082708180mm
    Weight
    about 8-10kgs
    Delivery
    about 15-20 working days
    Payment
    D/P, T/T, Western Union, MoneyGram
    Port
    Shenzhen
    Shipment
    A.By Courier: 4-7 Working days by special offer
    B.By Air: 7 Working days at appointed airport
    C.By Sea: 20-25 Working days at appointed port
