High Temperature Resistance Stable Structure PCB Magazine for PCB
Handling Equipment
Introduction

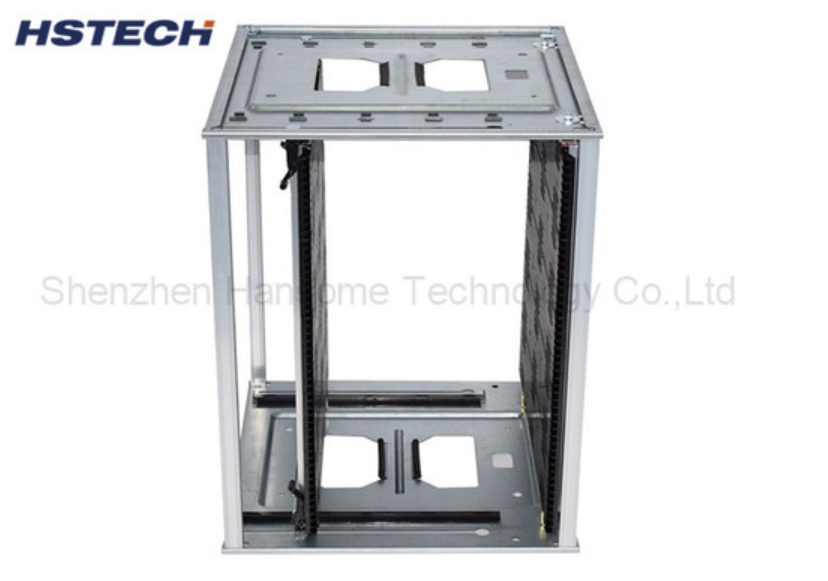

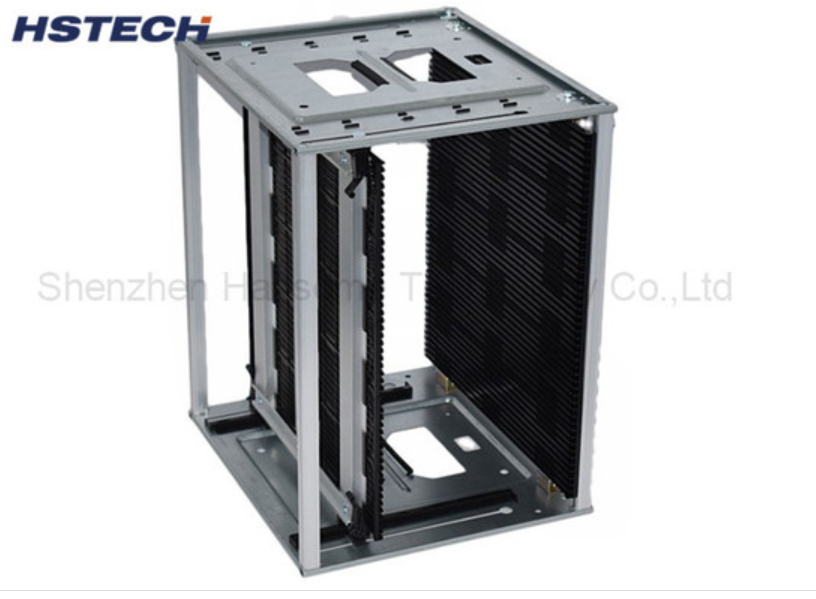

The circuit board silo, also known as the circuit board storage
rack, was designed to efficiently collect and transfer circuit
boards to the circuit board loader, which in turn introduces them
to the SMT production floor. The materials used to manufacture the
bins are unique, with volume-conductive polypropylene and robust
metal to ensure a robust structure. In particular, the bins are
anti-static, preventing damage to circuit boards due to static
electricity. Its sturdy construction also protects the boards from
damage or bending.
Specification
| Overal size | 355*320*565mm,also has other options |
| Suitable PCB size | 50*50~350*250mm |
| PCB storage capacity | Max 50pcs |
| Side guid slot | Depth 3.0mm, width 5.0mm, pitch 10mm |
| Surface resistance | 105Ω-109Ω |
| Heat-resistance | 80 °C/120°C/200°C |
| Width adjustment | Gear Tracker / clips |
| Top and bottom base panel | Metal material |
| Type | Anti-static |
| Single weight | 5kg |
Features
1,This product is used for PCB loading machine to collect PCBs and
convey them to the production line.
2,Top and bottom panels are made of tensile metal material to
ensure the stability of the whole structure.
3,The whole frame is anti-static design, and can store up to 50
pieces of PCBs.
4,Width can be adjusted by gears and fixed by clips.
5,The rack is non-toxic, odourless, moisture-proof,
corrosion-resistant, durable and stackable.
6, Stable structure, will not bend during operation, the rack also
has high temperature resistance.
7,Easy to install and dismantle, convenient for replacement and
maintenance.
