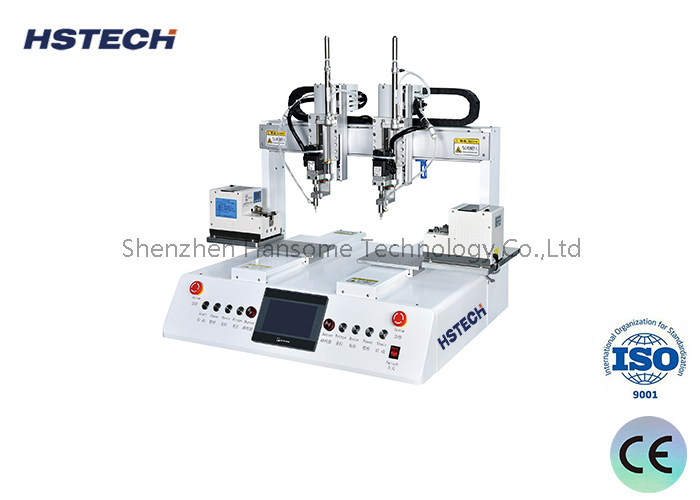

    High Precision Screw Fastening Machine with Touch Screen Control and Dual Head Feeder

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : HS-DH6331
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per month
    Delivery Time : 7~9 work days
    • Product Details
    • Company Profile

    High Precision Screw Fastening Machine with Touch Screen Control and Dual Head Feeder

    High Precision Screw Fastening Machine with Touch Screen Control and Dual Head Feeder
    Introduction
    The screw machine is a dual screw driver, dual platform, and suction screw feeder automatic screw locking machine, it use touch scrren and manual moving the screw head to do the location, its a much easy programming type, save much programming time. Its a new type screw locking machine which can replace the traditional manual teaching pandent programming machine, it's widely used in the electronics industry. Compatible for screws from M1 to M6, other special screws, also can be customization.
    Specification

    ModelHS-DH6331
    Production nameAutomatic Screw Locking Machine
    Moving range(X/Y1/Y2/Z)600*300*300*100*100mm
    X/Y1/Y2 axis moving speedClosed loop motor :1-800mm/s
    Z axis moving speedClosed loop motor: 1-300mm/s
    X/Y1/Y2 axis max loadClosed loop motor: 5KG
    Z axis max loadClosed loop motor: 3KG
    Power supplyAC110V/220V, 50/60Hz
    Repeat accuracy±0.02mm
    Document supportCAD CorelDraw
    Suitable screwsM1-M6
    Machine dimension8880*585*800mm
    Machine weight120kg

    Main parts brand


    1, Motor: Shinano

    2, Guide: Hiwin

    3, Photoelectric switch: Omron

    4, Power supply: Meanwell


    Features

    1. Feeding system: adopting suction feeding technology, single screw and single lock to ensure stable and efficient feeding.
    2. Operation interface: desktop visual interface, easy to operate, can be connected with automatic production line.
    3. Six-axis control: wide range of movement to meet complex processing needs.
    4. Multi-screw silo: improve feeding efficiency and flexibility.
    5. Dual station: improve productivity and reduce cost.
    6. Adaptable: Quickly change screw guides to adapt to different specifications.
    7. Convenient operation: simple interface, can operate multiple machines at the same time.
    8. File storage: large capacity storage, support hundreds of files, easy to call.
