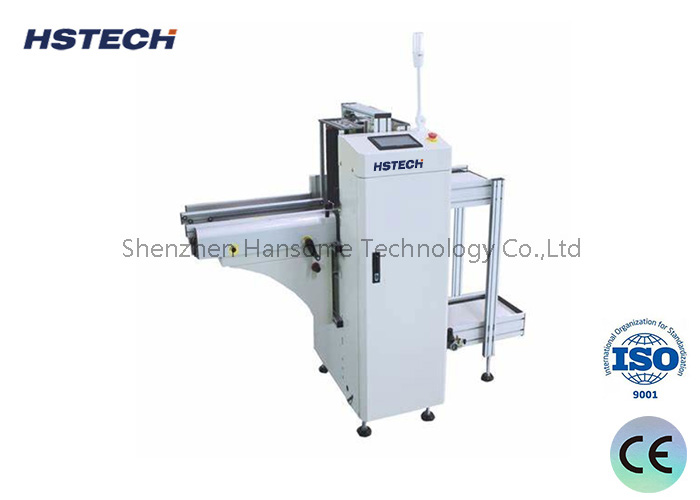

    Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine for SMT Production Line

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : HS-LD330
    Certification : CE
    Price : Negotiable
    Payment Terms : D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets per month
    Delivery Time : 15~20 work days
    • Product Details
    • Company Profile

    Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine for SMT Production Line

    Enclosed Button Control SMEMA Signal PCB Loader Hanling Machine for SMT Production Line


    Application


    The unit is designed to load printed circuit boards and transport them efficiently through the SMT line, ensuring a smooth production process.


    Features


    1. Modular design
    2.Robust Enhanced Stability
    3.Economical testing
    4.Upper and lower pneumatic fixtures
    5.Non-destructive loading and unloading
    6.SMEMA compatible


    Specification


    Product namePCB Loader Machine
    Transport height910±30mm
    PCB loading timeApprox 6 seconds
    Magazine replace timeApprox 30 seconds
    Transportation directionL~R, or R~L
    OperationFront operation
    Track fixed sideFront side(or specify)
    Power supply220V,50/60Hz,±10%
    Air pressure4-6bar
    PCB thicknessMin 0.4mm
    Magazine qtyUpper side:1 pc,bottom side: 2 pc
    Pitch selection1-4(10mm pitch)
    Conveyor speed0.5-20M/min or customized
    SignalSMEMA

    Model selection


    ModelHS-LD250HS-LD330HS-LD390HS-LD460
    Efficient PCB length50*50~350*250mm50*50~455*330mm50*50~530*390mm50*50~530*460mm
    Machine Size1400*800*1200mm1650*880*1200mm1800*940*1200mm1800*1010*1200mm
    Magazine size355*320*563mm460*400*563mm535*460*570mm535*530*570mm
    Weight140kg180kg220kg260kg

    About Us:


    Shenzhen HanSome Technology Co.,Ltd(HSTECH) was founded in 2012 by EMS senior engineers, initially focusing on PCB processing equipment, and then expanded to PCB depaneling machine and SMT cleaning machine. The company has a professional R & D team and experienced marketing team, follow the market trend, continuous innovation, provide cost-effective products, help customers to reduce costs and improve efficiency.


    About Products



    Control Bottun and electric box
