LCD Screen SMD Component Counter with Forward and Reverse Tape Functions for Control

Introduce

The number of components can be preset and the speed can be adjusted to facilitate ordering, distributing and picking operations. Specially designed for SMT tape-type parts, it can be used in any size. It is equipped with forward and reverse tape functions, which can fully control the number of SMT parts in the factory and avoid the backlog of inventory and funds. It is small in size, light in weight and easy to carry.

Features

It adopts the principle of photoelectric sensing and utilizes the corresponding relationship between the guide holes of the parts carrier tape and the parts to accurately measure the number of SMD parts, which can achieve convenient and fast counting. It is an efficient auxiliary equipment for SMT factory material management, especially for outsourcing processing. Homework helps a lot. It calculates the number of parts in a fully automatic way, which is convenient for ordering materials, distributing materials and inventory counting. The machine speed is adjustable from one to nine levels. When it is adjusted to level nine, the speed is twice that of an ordinary parts counter. Trouble-free operation. Low operating noise. Unique design to prevent the tape from falling off. It can be counted in both forward and reverse directions, and the quantity can be preset. You can set as many as you need, and it can stop at the preset quantity. It has an LCD display, which is easy to read, and the operation panel is bilingual in Chinese and English, making the operation simple. Humanized operating platform design. High accuracy and no counting error.

1. Stainless steel machine body.

2. Leak detection function, when tracking missing components, the counter will stop and reminder you.

3. The operation is simple, the positive and negative can be counted, and the function is really preset.
4. The quantity of preset parts can be used for the design of SMT belt type parts.
5. It can be equipped with scanning gun and bar code printer for easy management.
6. Counting speed can be ajustable,improve the efficiency,meet the different size tape.

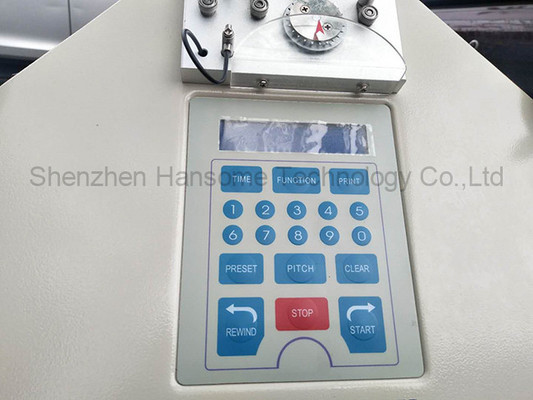

7. The counter use drafting LCD screen. Small size, light weight, easy to carry
8 .Use patent reflector,humanized operation platform.
9. Fully control the components in the factory, avoid mistakes.

10. Fully control the number of SMT parts in the factory, and avoid the inventory and capital accumulation. Small size, light weight, easy to carry.

Specification

Applications

Plate Counting
SMD Chip Counter can quickly and accurately count the number of various SMD components on the tray or reel.
This helps electronic manufacturing companies to accurately grasp the raw material inventory and schedule production.

Loading Verification
On the SMT placement production line, SMD Chip Counter can verify whether each feed tray or reel is loaded with the correct number of SMD components.
Avoid missing or wrong loading during manual feeding and improve production quality.

Defect Detection
SMD Chip Counter can also be used to detect whether SMD components are missing or misplaced on the tray or reel.
Timely detection of problems helps reduce production line failures and defective product rates caused by them.

Batch Management
The device can record the quantity information of each batch of SMD components and provide data support for production management and inventory tracking.
It helps companies achieve refined management of SMD materials.

Production Statistics
SMD Chip Counter can summarize the usage data of various SMD components on the production line.
Provide valuable statistical analysis for production planning, cost accounting, etc.
