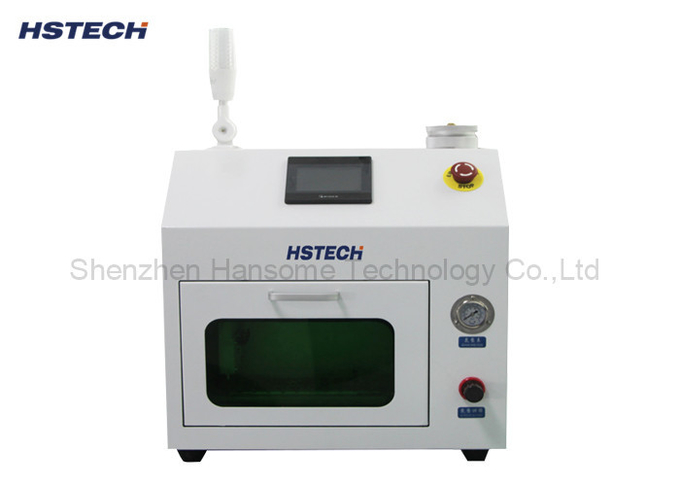

High Speed Max 30 Pcs SMT Cleaning Equipment SMT Nozzle Cleaner
With Touch Screen
Introduce
The nozzle cleaning machine is a cleaning equipment that replaces
the traditional use of steel needles or ultrasonic vibration to
clean the nozzles. The dirt on the suction nozzle that could not be
removed before can be removed in a short time. And the nozzle will
not be damaged during the cleaning process. Since non-toxic and
harmless cleaning fluid is used, the whole process is more
environmentally friendly. With the development of SMT,
miniaturization and high-density mounting of components have become
a trend.
Advantage:
1. Reduce the purchase cost of nozzles
The scrapping of suction nozzles is often caused by excessive dirt
or related accidents. After using this machine, the problem can be
solved fundamentally. Original nozzles are expensive, mostly
costing more than a thousand yuan. In the long run, the economic
benefits are considerable.
2. Reduce unnecessary labor
The traditional cleaning method requires a lot of manual
processing. After using the nozzle cleaning machine, there is no
need for special personnel and it is all done by the machine.
3. Reduce the product defect rate. Dirty suction nozzles and weak suction can easily cause component
sliding and material throwing, resulting in an increase in the
product defect rate.
4. Improve SMT production efficiency
Correct cleaning keeps the nozzle working in a brand new state,
avoiding identification errors and greatly improving production
capacity.
Cleaning Principle
High-pressure jet technology: A, fine water mist particles,
continuous pressure to reduce water, resulting in 3-10um particles
of water mist to clean the dirt into the inner wall of the small
nozzle aperture.
Pulsed power: B, Sound velocity (V=360m/s) forms a powerful pulsed
power injection onto the nozzle, which can reach 30 pulse frequency
per second, forming a continuous impact force above the nozzle to
be cleaned. Smash the surface and internal dirt for cleaning
purposes.
Specification
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Product Features
1, Elegant appearance, high precision 304 stainless steel machine
body.
2, Max can clean 30 pcs nozzles at one time, achieve high
efficiency and energy saving.
3, Suitable for cleaning all kinds of nozzles, also have good
cleaning performance for cross type, I-shaped, and special shape
nozzles.
4, The atomized water flow equipped with supersonic spraying
cleaning to completely clean the dirt impurities which the
ultrasonic waves can not clean it all, ensure the clearness even
very small nozzle holes.
5, Easy operation, English is available.
6, Inspection window which can watch the whole cleaning process.
7, Using D.I water as cleaning solvent,not harmful for all types of
nozzles and reflector panel.
8, Touch screen + PLC distributed control, stable and reliable
performance
Machine size
Nozzle Tray
