High Pressure Spraying Cleaning Touch Screen SMT Nozzle Cleaner
With 304 Stainless Steel
Introduce
The fully automatic nozzle cleaning machine is suitable for
cleaning nozzles of various specifications. It adopts the latest
cleaning technology and only uses pure water and air source to
solve the problem of nozzle maintenance, which accounts for 32% of
the SMT adsorption rate and placement rate. problem.

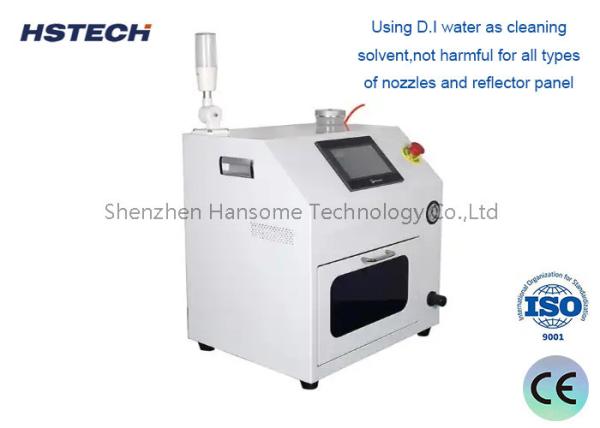

HS-800 nozzle cleaning machine can automatically complete the
cleaning and drying process, it adopts multiple spraying nozzles
spraying cleaning method, uses fluid mechanics to shred water,
produces very strong water mist, forms powerful kinetic energy at
the speed of sound and sprays on the nozzle, forming a continuous
shape above the nozzle, clean the dirty on the surface and inside
of the nozzles, it mainly used for cleaning small components, such
as 0603,0402,0201,01005 and high precision nozzles.
SMT Nozzle Cleaner Equipment principles and uses
By breaking up the water, extremely fine water mist is produced,
which is sprayed onto the suction nozzle with powerful kinetic
energy at supersonic speed, forming a continuous energy field above
the suction nozzle to be cleaned, crushing dirt on the surface and
inside. Independent cleaning, no damage to the suction nozzle.
Using this device for daily nozzle maintenance and cleaning work
can achieve a thorough cleaning effect in a safe state. It reduces
the scrapping cost of nozzles caused by traditional cleaning
methods, extends the life of nozzles, and plays a vital role in the
maintenance of the placement machine to ensure that the placement
machine operates in a better condition.
SMT Nozzle Cleaner usually has the following features and
functions:
1.Cleaning nozzles: SMT Nozzle Cleaner can effectively clean
residues on the surface of SMT nozzles, such as solder paste,
adhesives, particles, etc., by using specific cleaning media or
solvents. It can clean the nozzle by spraying, soaking or brushing
to ensure that the nozzle surface is dust-free and pollution-free.
2.Automated operation: SMT Nozzle Cleaner usually has automated
operation functions and can perform the cleaning process through
preset programs and parameters. It may have functions such as
automatic feeding, cleaning, discharge and drying to improve
cleaning efficiency and reduce manual intervention.
3.Multiple cleaning methods: SMT Nozzle Cleaner can provide a
variety of different cleaning methods to adapt to different types
and sizes of nozzles. Common cleaning methods include jet cleaning,
ultrasonic cleaning, rotating brushing, etc. These methods can be
selected based on the characteristics of the nozzle and usage to
ensure thorough cleaning results.
4.Control and monitoring: SMT Nozzle Cleaner usually has a control
system and monitoring functions to monitor the parameters and
status of the cleaning process. It may have functions such as
temperature control, cleaning time control, liquid level
monitoring, etc. to ensure the stability and consistency of the
cleaning process.
5.Maintenance and Care: SMT Nozzle Cleaner may provide maintenance
and upkeep features to ensure long-term reliability and stability
of the equipment. It may have automatic cleaning system self-test
and cleaning fluid replacement reminder functions to facilitate
timely maintenance and upkeep.
Main functions and features
- Completely solve the dirt and impurities that are difficult to
clean with ultrasonic waves;
- It will not be cleaned due to the smaller and smaller suction
nozzle hole diameter;
- More thorough cleaning directly extends the life of the nozzle;
- No damage to the nozzle surface coating and reflective plate;
- Use environmentally friendly deionized water or distilled water for
cleaning;
- Automatic continuous cleaning and automatic drying;
- The operation is simpler and more convenient;
- Suitable for various placement machines.
- Max can clean 30 pcs nozzles at one time, achieve high efficiency
and energy saving
Specification
| Model | HS-800 |
| Voltage | Single phase, AC110-220V, 50H60Hz |
| Air pressure | 0.5~0.6Mpa |
| Air source | Pure compressor air |
| Control mode | PLC+Touch Screen |
| Jet pressure | ≤0.4MPa |
| Air wastage | Under 280NL/min |
| Water source | D.I water |
| Water storage | 800cc |
| Water consumption | 300cc/hrs |
| Admission pipe/Drainpipe | φ8/φ6 |
| Nozzle tray | Default 30 nozzles |
| Nozzle size | 01005, 0201-2512inch |
| Noise | 35-60dB |
Machine size

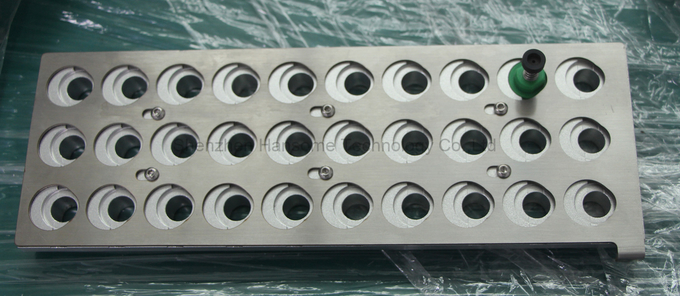

Nozzle Tray
