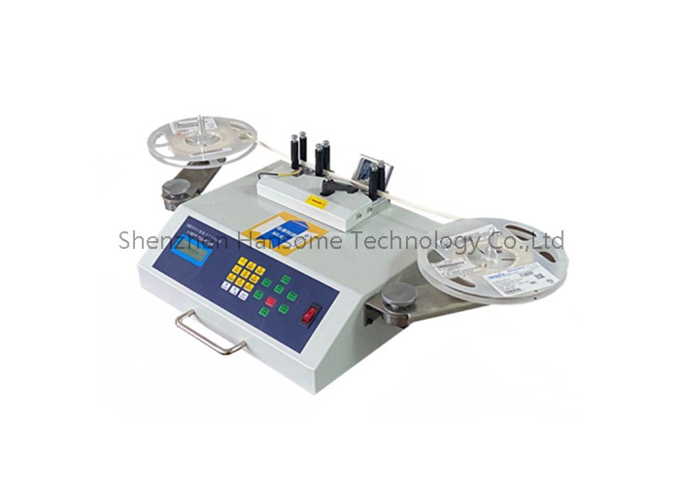

Automatic 7-13 Inch Reel Size SMD Chip Counter With Panosonic 6W AC Motor Suitable For All Tape Components

Introduce

The SMD Chip Counter (Surface Mount Component Counter) is an automated device used in the electronics manufacturing process. It is mainly used to quickly and accurately count surface mount components (SMD).

SMD Chip Counter has the following features and functions:

1.Efficient Counting: The SMD Chip Counter counts large numbers of SMD components quickly and accurately. It uses optical sensors, counters and image processing technology to scan and identify SMD components at high speeds and count them accurately.

2.Automated operation: These counters usually have automated operation functions and can be operated through preset programs and parameters. The operator only needs to place the SMD components to be counted in the counter, and the machine will automatically perform the scanning and counting process, improving production efficiency and reducing manual operations.

3.Multiple Size Accommodation: SMD Chip Counters usually have the ability to accommodate different sizes and types of SMD components. It can accommodate components of different sizes, from tiny chip components to larger connectors or sockets, by adjusting parameters, replacing components or adapters.

4.Counting Precision and Accuracy: These counters use high-precision optical sensors and image processing technology to achieve precise counting results. They are able to identify and count SMD components of different shapes and colors and provide accurate counting statistics.

5.Counting result display and recording: SMD Chip Counter is usually equipped with a display screen and counting result recording function so that the operator can understand the counting results in real time. Count data can be recorded and exported for purposes such as quality control, inventory management and production analysis.

Features

1.Compact SMD Component Counter, with convenient operation, fast function, in place of manual counting on the basis of greatly improving the effectiveness of the work and the quality of work .

2. With positive and negative rotation back to the belt function, speed adjustable fast and slow. Adjustable high speed of 9 levels, zero counting error. High quality.

3. Another FREE.SET function, can be preset to a fixed number, detect leakage, easy to point material, issue material, material receiving operations.

4.Can control the number of SMD parts in the factory to avoid inventory backlog, small size, light weight, easy to carry.

5. Designed for SMT tape parts, any size can be used.

6 beautiful shape design, more ergonomic.

Specification

Application

1.Automatic parts counter IQC feeding inspection

2. Parts counter is used in electronic production of collaterals, material issuing, material preparation.

3. Parts counter for tape package counting and leakage checking.

4. The parts counter is convenient for inventory operation.

5. Parts counter inventory management and other operations.

6. Belt type SMD electronic components (resistors, capacitors, diodes, transistors, IC, etc.)

7. Belt spacing between the two components: 2, 4, 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48, 52, 56 mm

8. Diameter of material disc: any size can be applied.

9.Belt width: 8,12,16,24,32,44,56m

Suitable for the following industries: electronic product manufacturers, SMT processing plants (SMT foundry) EMS professional electronic manufacturing services factory, SMD parts manufacturers, SMD parts suppliers, parts counter coil tape packaging manufacturers, and other electronic related peripheral manufacturing industries. And other electronic related peripheral manufacturing industries.
