Signal And Double Side Pcb Cleaning SMT Cleaning Equipment PCB
Surface Dust Cleaner With ESD Brush
Introduction
This machine is a automatic PCB cleaning machine in the SMT
production line, it used for clean the dust, static, and other
dirties on the PCB surface.
The machine used between the PCB loader and screen printer, also
used before the conformal coating equipment. It's a new development
and also a trend for the SMT production line, because it clean the
PCB before the welding, so the defects during and after the welding
will be eliminated in advance.
Features
1, The whole machine is made of stainless steel.
2, PLC program control.

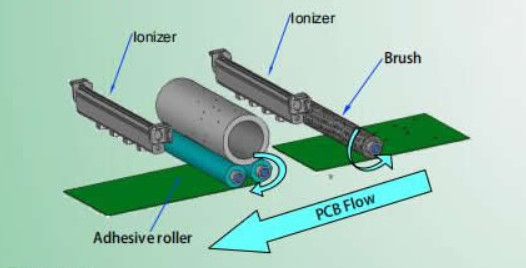

3, Two pcs Keyence brand ion wind bar(ionizer), two pcs sticker
roller, one pc adhesive roller combined for the whole cleaning
process.
4, Ionizer use for clean the electric static on the PCB.
5, Adhesive roller and sticker roller work together clean the dust.
6, In-line cleaning, upstream machine is the PCB loader, down
stream machine is the screen printer.
7, Draw-out design for easy changing of adhesive rollers and
maintenance.
8, Standard machine is the single side PCB clean, double side
cleaning process is optional.
9, Manual adjust the PCB width, automatic adjustment is available
based on customer's request.
9, SMEMA signal compatible.
Specification
| Model | HS-330BC | HS-460BC |
| PCB dimension | (50*50)~(460*330) | (50*50)~(530*460) |
| Machine dimension | 555*900*1350 | 555*1030*1350 |
| Weight | 90kg | 110kg |
| PCB thickness | 0.5~3.2mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| ESD brush | Top 1 pc |
| Dust remove sticker roller | top 2 pc |
| Adhesive roller | Top 1 pc |
| Vacuum device | 1 pc |
| Ion wind bar brand(ionizer) | 2 pcs, best quality Keyence brand from Japan |
| If with dust collector | Yes |
| Conveyor rail adjustment | Crank wheel |
| Fixed rail | Front fixed |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
| Signal | Smema |
Why do you need a PCB cleaning machine?
The PCB was not strictly cleaned when leaving the factory, and a
large amount of debris and dust remained on the PCB surface, edges,
through-holes, etc.;
PCB easily generates static electricity during processing, which
can easily cause static damage or absorb dust during the SMT
process.
Foreign matter such as dust can cause poor printing and poor
welding such as virtual welding, empty welding, component warping,
and deflection. Cleaning PCB can prevent and reduce the production
of defective products, improve quality, and achieve the purpose of
enhancing product reliability.
