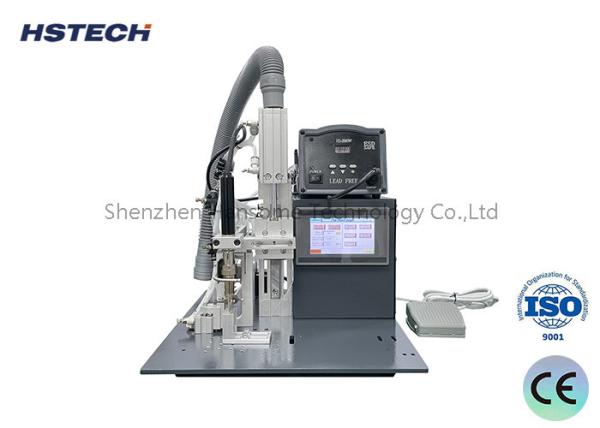

Touch-Screen Semi-Auto Soldering Station Automatic Soldering Robot
With Pedal Switch
Introduction
Semi-Auto Soldering Station is a device used for electronic
welding, which provides a semi-automatic welding solution.
The following are the general features and functions of
semi-automatic welding stations:
1.Welding control: The semi-automatic welding station is equipped
with a welding control system that can provide functions such as
temperature control and welding time control. This enables
operators to adjust and control welding parameters according to
welding requirements to ensure welding quality and consistency.
2.Soldering Handle/Soldering Iron: Semi-automatic soldering
stations are often equipped with a soldering handle or soldering
iron for performing soldering operations. Welding handles usually
have heating elements and temperature sensors that provide the
required welding temperature and heat.
3.Soldering station/stand: Semi-automatic welding stations are
usually equipped with a soldering station or stand for placing and
fixing electronic components or welding objects to be welded.
Welding stations typically have high-temperature,
corrosion-resistant surfaces to contain the heat and welding
materials generated during the welding process.
4.Auxiliary tools: Semi-automatic soldering stations may also be
equipped with some auxiliary tools, such as solder supply devices,
solder cleaning devices, solder shears, etc. These tools can
improve welding efficiency and accuracy and simplify operating
steps during the welding process.
5.Safety features: In order to ensure the safety of operators,
semi-automatic welding stations are usually equipped with some
safety features, such as overheating protection, anti-slip base,
anti-electric shock device, etc. This helps reduce potential safety
risks and accidents.
Features
1. PLC touch-screen all-in-one machine, with timely and reliable
response and
anti-interference.Support system continuous update.
2. Soldering time,tin feeding time and volume and other parameters
all controlled by the touch
screen.
3, 150W high frequency soldering station.
4. Use customized fixture (jig) to fix the product during the
soldering process, different product use
different jig.
5. High stability imported air cylinder.
6, Use positioning metal solder handle.
7, High precision step solder wire feeder
8. Easy operation, operator can learn and use it in fast time.
Technical details
| Product Name | Semi-auto soldering station |
| Model No. | HS-668 |
| Power supply | Single phase, 220V 50/60Hz |
| Air pressure | 0.2-0.6MPa(Use clean dry air) |
| Control mode | PLC+touch screen |
| Temperature | (-10)-(+60℃)No wind, no dust |
| Soldering control switch | Pedal switch |
| Machine size | L410*W350*H500MM |
| Weight | 15 KG |
Maintenance
1. The waste produced by the machine in the course of work should
be cleaned up in time to avoid
obstruction and cause the machine to run badly.
2. After each shift, first clean the environment, so that the
ground dust-free, clean. Clean the
equipment again, including welding platform surface, moving shaft,
welding head, etc. No
3. The sliding part of the machine is lubricated once a week to
ensure smooth sliding.
4. Machine parts secured.
5. The fixture and fixture holder are cleaned every 4 hours.
6. The soldering tip is maintained every 2 hours. Observe the loss,
service life about 20000-35000
points, timely notify the production line technician to replace the
soldering tip.At present, all
sold soldering tips may be oxidized or perforated due to tin wire
damage is more common.
Please replace the tin wire in time if you can not change the tin
material and can not reach the
above service life. Please understand above.
Product Details
PLC touch-screen all-in-one machine
Soldering tips of different sizes can be configured
