Single Station Semi-Auto Soldering Station Automatic Soldering Robot For Electronic Assembly

Introduction

Semi-Auto Soldering Station is a device used for electronic welding, which provides a semi-automatic welding solution.

Function Overview
This is a semi-automatic equipment that integrates multiple welding functions.
It can realize automatic identification of solder joints, automatic tin supply, automatic welding and other functions.
It greatly improves welding efficiency and welding quality, and is suitable for small and medium-sized batches of electronic products welding.

Main features

Working process
Place the circuit board to be welded on the positioning platform.
The machine vision system automatically identifies the position and angle of the solder joint.
The automatic tin supply system supplies an appropriate amount of solder to the solder nozzle.
The welder automatically aligns the solder joint according to the identification results and implements welding.
After welding is completed, it automatically exits and waits for the next solder joint.

Application scenarios
Mainly used in the welding process of electronic product manufacturing, such as PCB assembly, electronic module welding, etc.
Suitable for small and medium-sized batch production, improve welding efficiency, and ensure welding quality.
It is widely used in consumer electronics, industrial control, communication equipment manufacturing and other industries.

Product Name	Semi-auto soldering station
Model No.	HS-668
Power supply	Single phase, 220V 50/60Hz
Air pressure	0.2-0.6MPa(Use clean dry air)
Control mode	PLC+touch screen
Temperature	(-10)-(+60℃)No wind, no dust
Soldering control switch	Pedal switch
Machine size	L410*W350*H500MM
Weight	15 KG

Maintenance

1. The waste produced by the machine in the course of work should be cleaned up in time to avoid

obstruction and cause the machine to run badly.

2. After each shift, first clean the environment, so that the ground dust-free, clean. Clean the

equipment again, including welding platform surface, moving shaft, welding head, etc. No

3. The sliding part of the machine is lubricated once a week to ensure smooth sliding.

4. Machine parts secured.

5. The fixture and fixture holder are cleaned every 4 hours.

6. The soldering tip is maintained every 2 hours. Observe the loss, service life about 20000-35000

points, timely notify the production line technician to replace the soldering tip.At present, all

sold soldering tips may be oxidized or perforated due to tin wire damage is more common.

Please replace the tin wire in time if you can not change the tin material and can not reach the

above service life. Please understand above.

Product Details

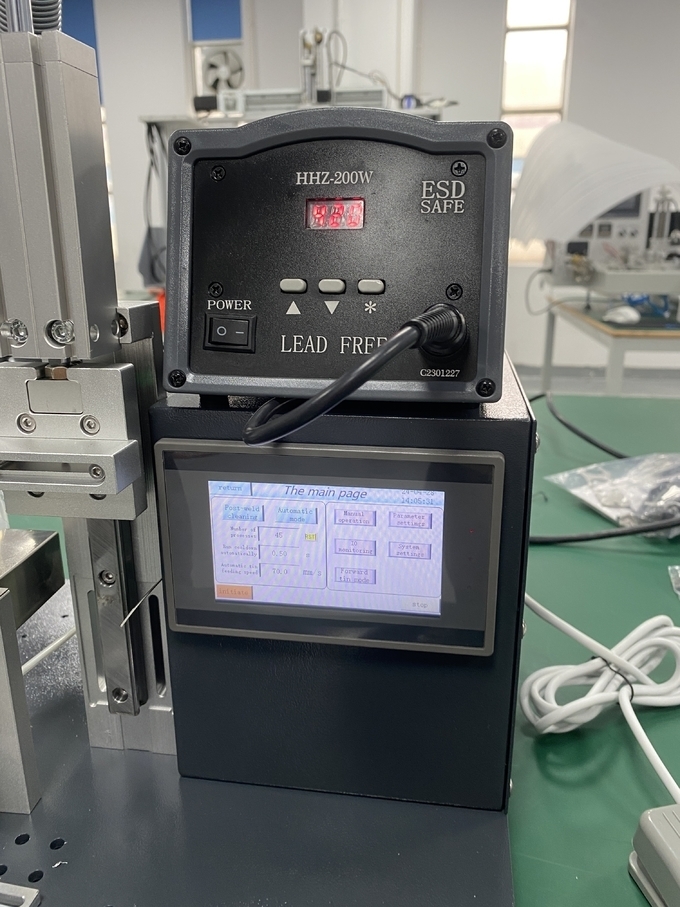

PLC touch-screen all-in-one machine

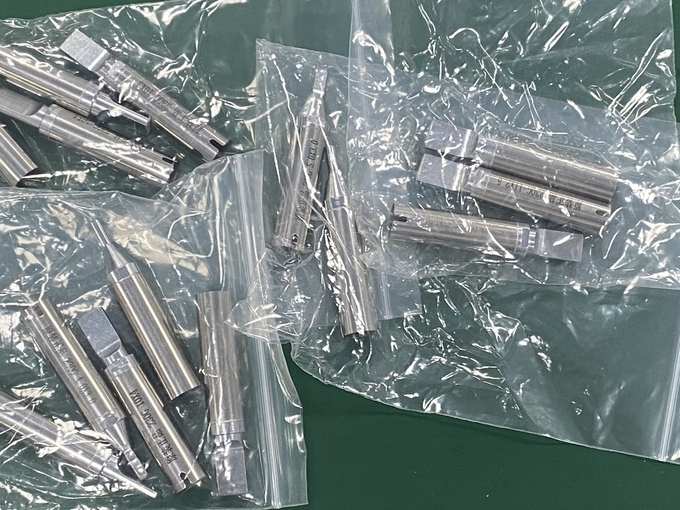

Soldering tips of different sizes can be configured

About Packaging

Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.
HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
