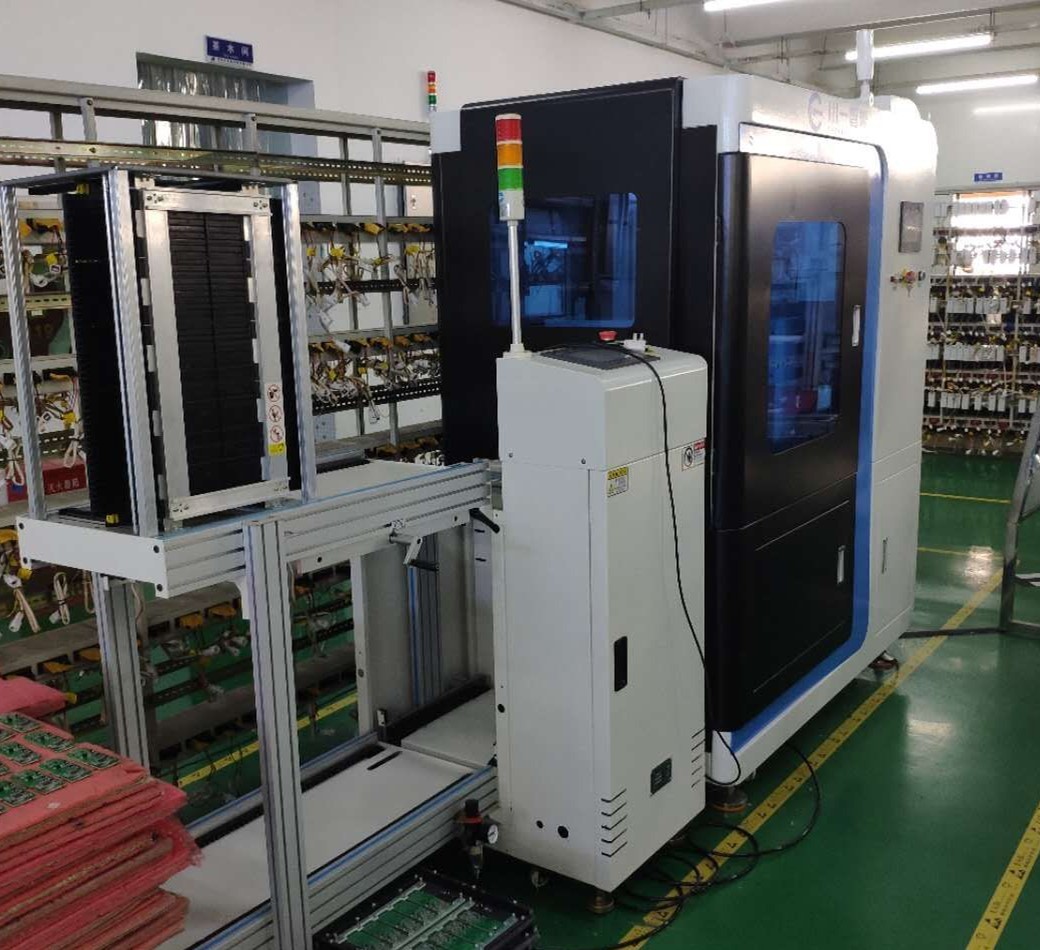

Linear and Circular Blade Fixture Equipped Inline Vcut PCB Depaneling Machine

Description

This PCB separating machine is a full automatic inline V-cut type PCB separating machine, it's use the PCB loader to achieve automatic PCB loading, and the belt will trasport the PCBs for X axis and Y axis automatic Separating with linear blade and circular blade combined.

Operator just put the boards into the magazines and wait the PCB units after separating at the end of the machine.It's a high automatic PCB separating machine.

Features

1, Automatic inline separating.

2, Automatic feeding with PCB loader, automatic X axis and Y axis direction vcut separating.

3, With waste PCB collecting box.

4, Transporting belt for collecting after separated.

5, PLC control precision PCB depaneling, can connect the PCB loader machine, full automatic from board loading and collecting.

6, Save the labour for manual loading the PCBs, much efficiency and more precision.

7, Can save 100 groups board separating data, when separating different type boards, just import the saved data, very convenient.

8, Moving balde type boards separating method, ultra low cutting force stress, suitable for PCB with components double sided.
9, The machine equipped with infrared light curtain sensor, high security.

10, Taiwan brand TBI lead screw, smooth and easy adjusted.
11, High speed Japan brand steel balde, can be sharpen repeatly.
12, The machine can add the SMEMA single, can connect the PCB loader to achieve automatic loading.

Specification

Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.
HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
