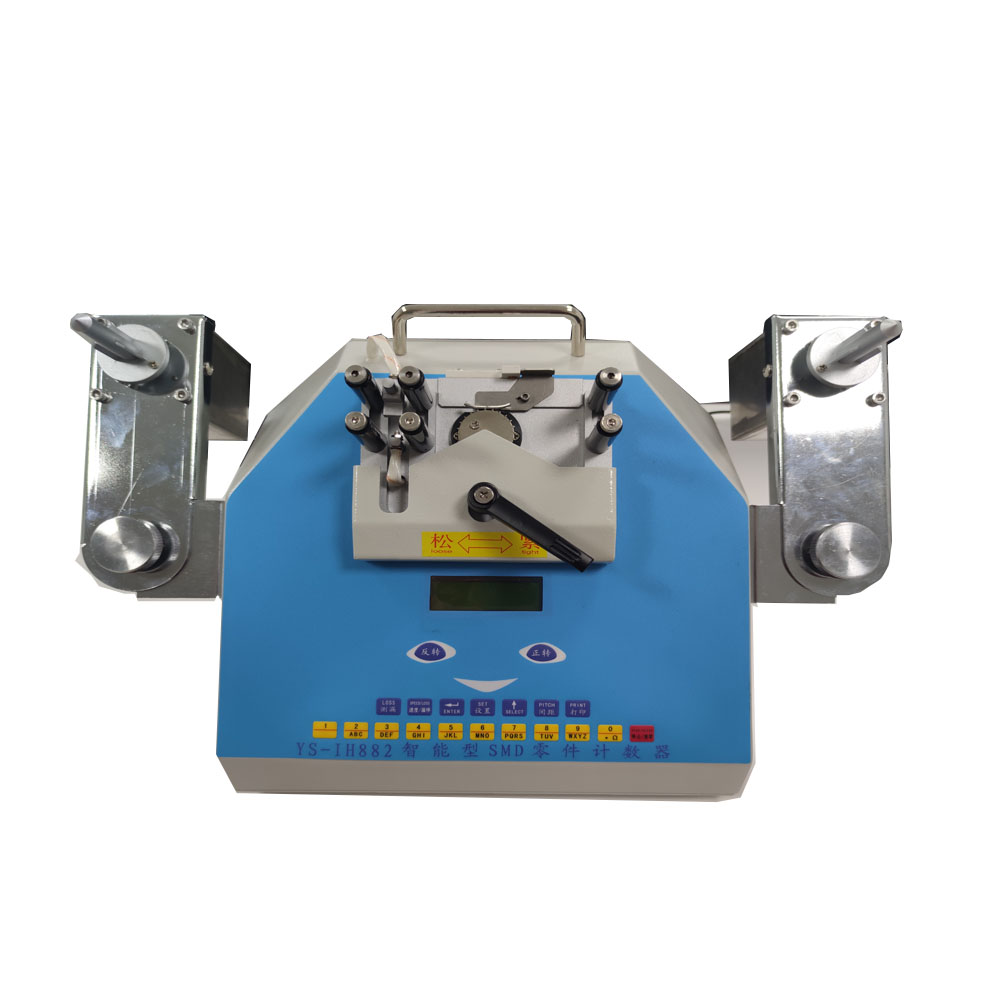

Panasonic Motor Leak Detection Track 7-13 inch Reel Smart SMD Chip
Counter
Introduction
This SMD counter machine can accurate and quick detect of SMD
components quantity and examine empty components, it driven by
servo motor, which can achieve high precision components counting.
Product Application
1.suitable for all SMD tape
2.SMD tape pulley suitable for all size
3.SMD tape pitch: 2, 4, 8, 10, 12, 16, 24, 32, 44, 56mm
4.SMD tape width: 8, 12, 16, 24, 32, 44, 56mm
Attention before usage
1.Make sure the voltage conforms to your facility
2.Made sure earth wire is well grounded.
Specification
| Model | HS-882 |
| Power supply | AC110V,AC220V, 50/60Hz |
| Wattage | 80W |
| Counting time | 19 seconds to 2 min |
| Counting range | -16777216~16777216 pcs |
| Pitch size | 2,4,8,9,10,12,16,24,32mm |
| Tape width | 8,12,16,24,32,44,56,72,88 m |
| Plastic reel size | 7-13 inch |
| Application | Suitable for all components |
| Product size | 730*230*270mm |
| Gross weight | 11kg |
Features
1. Intellegent counting, with pocket check function.
2. Eight grade speed adjustment, improve the efficiency,meet the different size tape.
3. Optional label printer and barcode scanner.
4. With voice prompt function.
5, With the end comopnents automatic stop counting function.
6. 57 stepper motor.
7, The wohle machine body stainless steel, durable design.
8, High resolution LED display, better to observe the counting
process.
9, Fully control the components in the factory, avoid mistakes.
Comparison with traditional counter
| Comparison point | Traditional counter | Intelligent counter-HS-881 |
| Automatic stop after work | No, need to push stop manually | yes |
| Buffer stop | No | Yes,would slow down when is finishing |
| Voice instruction and number off | No | Yes, finish alert |
| Error | No. | No. |
| Power | 30W | 80W |
| Speed | For 5000pcs small elements 30 seconds per plate | For 5000pcs small elements 15 seconds per plate |
| Speed Adjustment | 3 levels | 8 levels |
| Noise | Low | low |
| Counting scope | -99999 to 99999 | -16 777 216 to 16 777 216 |
| Printer port | yes | yes |
| Scanner port | yes | yes |
| Omission detection, optional | yes | yes |
| Clock, optional | yes | yes |
