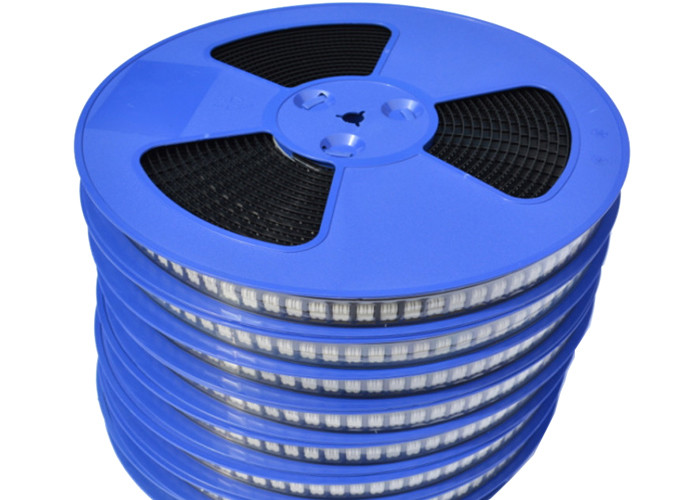

SMD Tape and Reel Packing Carrier Tape for Components Collecting and Storage

We supply high quality embossed carrier tapes and custom carrier tapes according to customers's demand.
If you need a carrier tape to allow parts to be placed and sealed to go onto a pick and place system, then we have options for you.

Introduction

The Carrier tape has pockets that are shaped to match the contours of the component to be carried. The width of carrier tape is between 8 and 104 mm,which is under the EIA standars, we also can custom for customers. In the carrier tape, there are sprocket holes down both sides of the tape, round with a radius of approximately 1.5 mm on one side and oval with a "radius" of 0.75 mm on the other. These holes enable precision presentation of the pocket to the pick and place unit.

Carrier tape size and it matched cover tape

Each carrier tape has it matched cover tape, the cover tape has the cold sealing and hot sealing options during the components packing,also the cover tape has the ESD options. Below is the dimension of the carrier tape and it matched cover tape diagram.

Application

The embossed carrier tapes are widely used in the surface packaging, carrying and transmission of the surface mounting equipments,for example, the mini PCB , IC ,LED chip, connectors, diodes, dynatrons, resistors, conductors, capacitors, fuses, switches, relays, resonators, radome, socket component,etc.

Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.
HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
