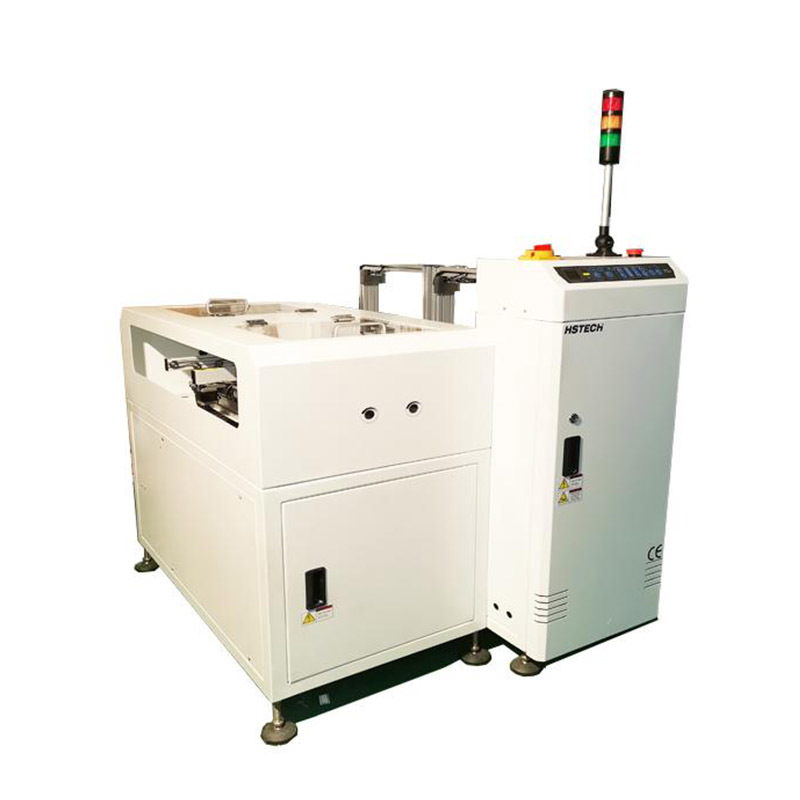

    PLC Program Control Strong Firm Utomatic NG/OK Board Separate NG OK PCB Unloader

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : HS-NK250
    Certification : CE
    Price : Negotiable
    Payment Terms : D/P, T/T, Western Union, MoneyGram
    Supply Ability : 200 sets per month
    Delivery Time : 15~20 work days
    • Product Details
    • Company Profile

    PLC Program Control Strong Firm Utomatic NG/OK Board Separate NG OK PCB Unloader

    Description

    This unit is used after the AOI, by receiving the upstream AOI signal, automatic collect the NG/OK boards separately to relevant magazine.


    Features
    1.PLC program control.

    2.Strong,firm

    3.Optional control button or touch screen control up to customers.

    4.Top and bottom pneumatic clamps to secure magazine rack.

    5. No PCB breakage guaranty during loading&unloading.

    6.Automatic NG/OK board separate store NG/OKboards.

    7. NG/OK signal from the upstream AOI machine.

    8.Self programmed machine error display,different errors has different code,each code has relevant maintenance instruction which paste in the back side of machine door.

    9. Enclosed machine design for safety operation.

    10, Three color tower light display.

    11. SMEMA compatible.


    Technical details

    HSTECH

    FunctionCollect the NG/OK boards separately by receiving the signal.
    Transport height910±30mm
    Transportation directionL~R, or R~L
    Board collect timeEach approx 6 seconds
    Magazine change over timeApprox 30seconds
    Track fixed sideFront side
    Operation sideFront side
    Conveyor beltESD
    PCB thicknessMin 0.6mm
    Pitch selection1-4(10mm pitch)
    Power supply220V,50/60Hz,±10%
    Power0.05kW
    Air pressure4-6Bar
    Air consumptionMax 15L/min
    Number of magazinesUpper:1 magazine, Bottom side:2 magazines
    SignalSMEMA
    Options

    1, Touch screen control mode.

    2, Automatic width adjustment.

    3, Magazines quantity up to customer requirement.



    Specification

    ModelHS-NK250HS-NK330HS-NK390HS-NK460
    Efficient PCB length50*50~350*250mm50*50~455*330mm50*50~530*390mm50*50~530*460mm
    PCB thicknessMin 0.6mmMin 0.6mmMin 0.6mmMin 0.6mm
    Magazine size355*320*563mm460*400*563535*460*570mm535*530*570mm
    Machine dimension1950*1600*1200mm2300*1760*1200mm2500*1880*1200mm2500*2160*1200mm
    Weight220kg280kg340kg380kg
