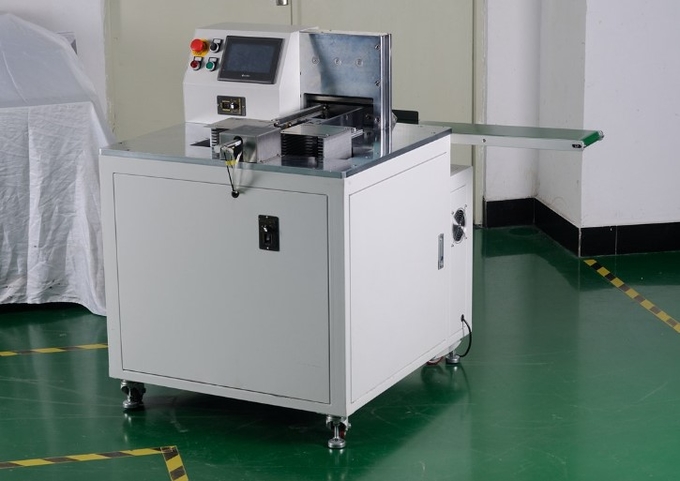

    Automatic Step Motor And Servo Motor Auto Guillotine PCB Depanelizer

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : HS-A310
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 7~9 work days
    • Product Details
    • Company Profile

    Automatic Step Motor And Servo Motor Auto Guillotine PCB Depanelizer

    Automatic Step Motor And Servo Motor Auto Guillotine PCB Depanelizer


    Introduction


    This machine is a guillotine type PCB depaneling machine, but it use the track to achieve automatic PCB board loading instead of the manual board loading, so it's a automatic machine, This machine use the human interface operating system, easy and convenient operation. It's a more efficient guollitine type board depaneling machine.


    Features


    1, The whole machine body is made of stainless steel, stable and durable.

    2, The machine adopt two pcs linear blade, the balde length is 240mm, and board width is 50-150mm.
    3, Human interface operating system.

    4, Automatic board loading, automatic depaneling.
    5, The machine can save the depaneling data, convenient for save and import different board parameters.
    6, Vertical stand structure, easy to move.
    7, Equipped with separating quantity counter.
    8, Loading part using the servo motor, board fixing use the step motor.

    Specification


    Product nameAutomatic guillotine PCB depaneling machine
    ModelHS-A310
    Part-up heightMax 35mm
    Part-down heightMax 20mm
    Air supply5-7kgf/c㎡
    Production ability1800-4000pcs/H
    VoltageAC220V/110V,50/60Hz
    Separating width1-240mm
    BladeTwo pcs linear guillotine blade
    Blade adjustment distanceUpper and down 3mm
    Separating speed1-300mm/s
    V-cut thickness0.6-2mm
    Machine size900*800*1100mm
    Weight150kg

    Automatic Guillotine PCB Depaneling Machine, Max 240mm Length, Servo Motor, 1800-4000pcs/H 0
