    SMT Cleaning Equipment with 3 Level Filter System and 0-7KG Pressure for SMT Process

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : HS-600
    Certification : CE,RoHS
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 50 sets per month
    Delivery Time : 7~9 work days
    • Product Details
    • Company Profile

    SMT Cleaning Equipment with 3 Level Filter System and 0-7KG Pressure for SMT Process

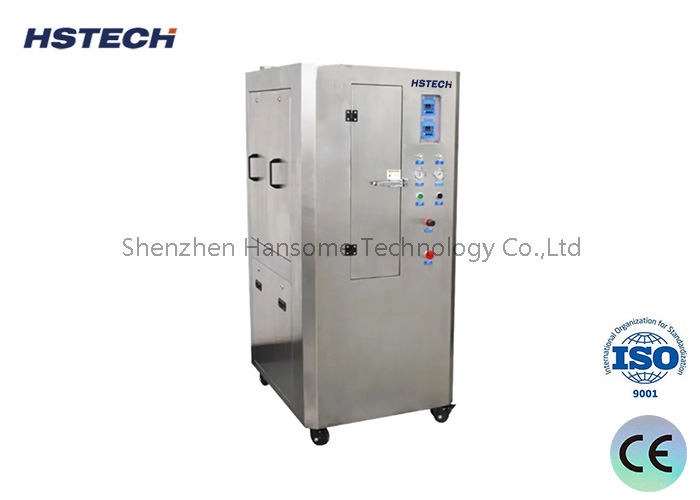

    60L SMT Stencil Cleaning Machine with 3 Level Filter System and 0-7KG Pressure​


    Introduction


    This machine used to cleaning stencil, steel mesh, copper screen, gule screen, etc SMT process screens.


    Features


    1, Full pneumatic power, connect with the air compressor, don't need connect the 200V or 110V voltage.

    2, The whole process including cleaning and drying.

    3, The machine has the timer to set the show the cleaning and drying time, also has the pressure gauge to show the cleaning and drying pressure.


    Specification


    ModelHS-600
    Product nameScreen printer stencil cleaner
    Machine metarialStainless steel, anti-fire, explosion-proof
    PowerPneumatic
    ApplicationStencil,cooper screen,gule screen
    Stencil sizestandard 29inch and below
    Cleaning solventAlcohol
    Cleaning liquid capacityMax 45L,Min20L
    Best cleaning fluid using volume40L
    Liquid consumption120ml/pc
    Cleaning method

    Rotary double side pressure injection and high pressure air

    Cleaning time2~4 Min
    Drying time2~5 Min
    External air supply0.4Mpa~0.6Mpa
    Consumer air quantity400~600L/Min
    Air outlet sizeφ125*25mm
    Solder dross filter mode3 level filter(10um,5um,1um)
    Weight250kg
    Machine dimension980MM(L)*700MM(W)*1730MM(H)
