Drawer Feeding Automatic Depaneling PCB Router Machine with Dust
Collector
Features
1, Milling type PCB Router with high precision and high
cleanliness,dual parallel work platform and single pindle.
2, Low footprint,drawer type platform is designed to avoid the
pollution of cleanliness room.
3, Top side dust collection with higher efficiency than the bottom
side,and lower noise.
4, Dual platform design, easy to operate and maintenance.
5, Application for 350*350mm pcba, bigger size can be customized.
6, Upgrade with robot to realize inline function.(option)
Specification
| Model | CM-610 | CM-610max |
| Max PCB size | 350x350mm | 450x450mm |
| Min PCB size | 5x5mm |
| PCB thickness | 0.4~6mm |
| Work table height | 850mm |
| Loading mode | Manual feeding and release |
| PCB positioning | Magnetic thimble or jig |
| Cutting spindle/speed | Sycotec,made in Germany,5000-60000rpm |
| Cooling type | Self cooled type |
| Break knife inspection | Yes |
| Cutting speed | 1-100mm/s |
| Cutting accuracy | ±0.05mm |
| Milling kit | φ0.8~φ3.0 right rotation,shank tungsten steel |
| Repeating positioning accuracy | ±0.02mm |
| Coordinate moving speed | 1000mm/s |
| Precedure programming | GERBER drawing import or editing through visual system |
| Air supply | 5-8KG/cm³ |
| Power supply | AC380V±5%,50/60Hz,3KW |
| Machine dimension | 1250*1000*1650mm | 1350*1100*1650 |
| Machine weight | Appro 900kg |

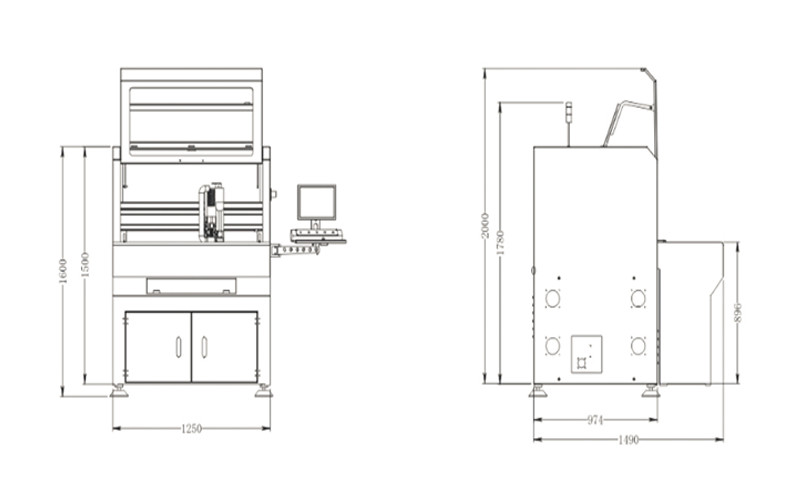

Machine dimension
Machine details

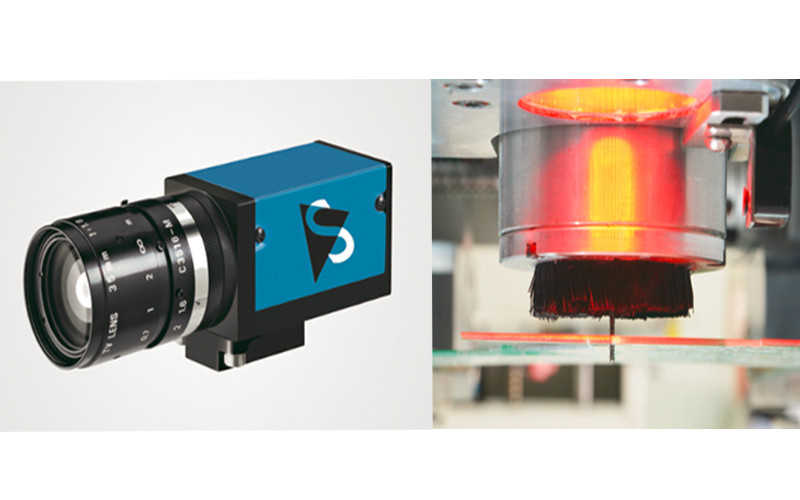

Super Vision System(Equipped with Germany Industrial imaging camera
and Japan brand Moritex lens), and ESD brush top side dust
collection device.
Intergrated cutting system(Cutting with jig or magnetic thimble),
and Magnetic thimble PIN(patent design)
Reliable cutting system(Use Germany Sycotec spindle and frequency
invert),Win7/Win10 english version system.
