    KIC Thermal Profile USB Cable Cool Touch Stainless Steel KIC X5

    Ask Lasest Price
    Brand Name : KIC
    Model Number : X5
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 3 work days
    • Product Details
    • Company Profile

    KIC Thermal Profile USB Cable Cool Touch Stainless Steel KIC X5

    KIC Thermal Profile USB Cable Cool Touch Stainless Steel KIC X5


    Introduction

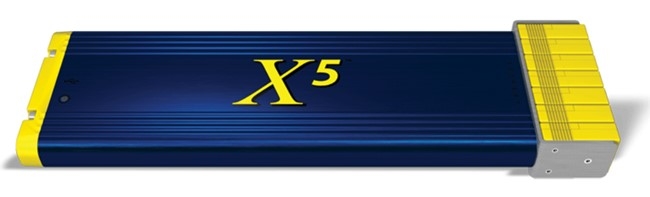

    With 7, 9, and 12-channel models, the X5 is able to acquire a lot of data, allowing you to precisely evaluate each thermal profile and process in your factory. Measure slope, peak temperature, time above liquidous, and more. Data is transferred to your computer via a USB cable or, for RF models, wirelessly through radio frequency transmitters—no cable connection required.

    USB Cable Thermal Profiler 7 Channels Standard Type K Thermocouple KIC Thermal Profile 0

    KIC 'X5' Key Features


    1, Robust hardware backed by 2-year warranty
    2, Wireless data transfer with RF-equipped models
    3, SPC (statistical process control) software included for documentation and production optimization
    4, Simplifies oven setup: KIC’s optimization software selects the best oven setup for each new product in seconds
    5, User-selectable setup criteria
    6, Reduces profiling to a single number: The PWI (process window index) makes it easy for operators, techs, and engineers to see at a glance how close the profile comes to spec.
    7, Immediate profile analysis: Objective and personnel-independent profile analysis gives you information you can bank on.


    Specifications


    ModelKIC X5
    Dimension7-channel: 206 x 60 x 17 mm,with shield: 302 x 75 x 23 mm
    9-channel: 206 x 75 x 17 mm,with shield: 312 x 90 x 23 mm
    12-channel 206 x 98 x 17 mm,with shield: 323 x 113 x 23 mm
    Accuracy± 0.5˚C
    Resolution0.1˚C
    Interal operating temp0˚C~85˚C
    Sample rate0.1 to 10 readings/sec
    Data points224,640
    Data transferStandard model
    USB 2.0 (Std-A/Mini-B) after datalogging run
    RF model
    Wireless over RF (radio frequency 433.92 MHz), sent real-time during datalogging run, or via USB 2.0 (Std-A/Mini-B) after datalogging run
    Power3 AAA batteries, USB cable when connected to a computer
    Thermocouple CapacityType K, standard (7, 9, or 12, depending on model)
    Thermocouple Temperature Range-150˚C to 1050˚C
    Thermal shieldCool Touch Stainless Steel 7 or 9 channel
    Computer Configuration
    Minimum System Requirements
    Dual Core / 1 GHz processor PC w/2 GB RAM
    2 GB available storage
    Video 1024 x 768 resolution, 16-bit
    1 available USB port for data download
    1 available USB port for software key
