SMD Chip Mounter 20000series SMT Nozzle Juki 7505 For SMT Production Line

Ask Lasest Price
Brand Name :	JUKI
Model Number :	7505
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	10000 pcs per month
Delivery Time :	1-3 work days

Add to Cart

Product Details
Company Profile

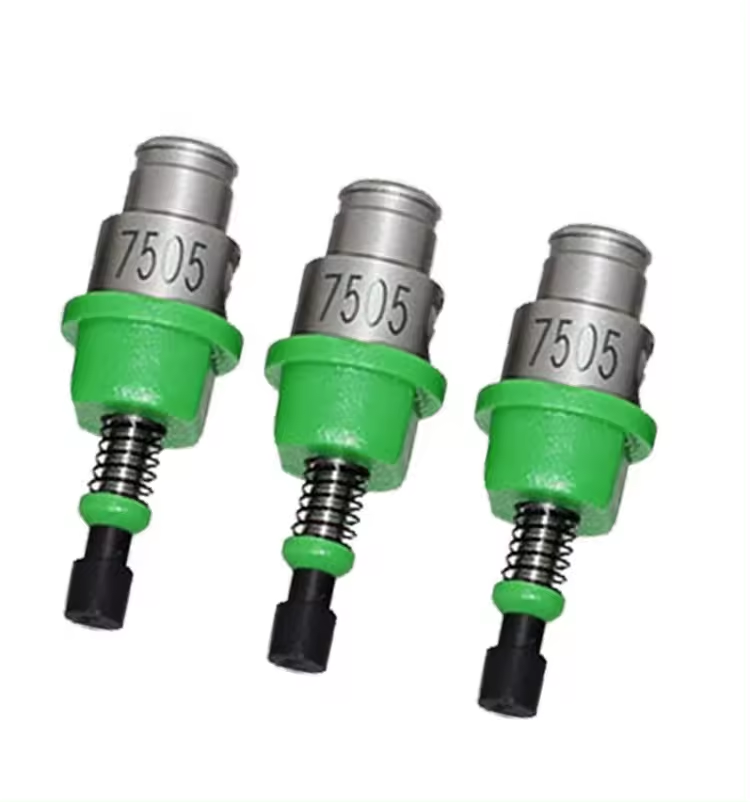

SMD Chip Mounter 20000series SMT Nozzle Juki 7505 For SMT Production Line

Smd Chip Mounter 20000series Smt Nozzle Juki 7505 For Smt Production Line

introduce

The SMT nozzle is installed on the patch head and is used to pick up component patches and mount them on the circuit board. With the miniaturization and high density of components on circuit boards, higher requirements are placed on the accuracy of placement machines, and higher requirements are also placed on the precision and quality of SMT nozzles.

SMT (Surface Mount Technology) nozzle is an important tool used in automated placement equipment for electronic components, used to pick up and place small electronic components. There are many types of SMT nozzles according to different needs, common ones include:

Round nozzle	The round nozzle is the most common type, suitable for picking up and placing round electronic components, such as chip resistors, capacitors, etc.
Rectangular nozzle	The rectangular nozzle is suitable for picking up and placing rectangular electronic components, such as IC chips, diodes, etc.
Needle nozzle	Needle nozzle is suitable for picking up and placing elongated electronic components, such as inductors, crystal oscillators, etc.
V-shaped nozzle	V-shaped nozzle is suitable for picking up and placing special-shaped electronic components, such as LED lamp beads, optocouplers, etc

In addition, there are some special types of nozzles, such as rotating nozzles, elbow nozzles, etc., which can be selected and used according to specific placement requirements. It should be noted that different nozzles are suitable for electronic components of different sizes and shapes. Choosing the appropriate nozzle type is very important for the efficiency and quality of placement work.

Nozzle material:

Tungsten steel nozzle	Tungsten steel nozzle is strong and durable, but it is easy to turn white. If it turns white, use an oil-based pen to paint it, and you can continue to use it.
Ceramic nozzles	Ceramic nozzles never turn white, but are brittle and easy to break. Careful use can avoid or reduce breakage.
Diamond steel nozzle	It is strong, easy to use, and will never turn white, but it is very expensive and not cost-effective.
Glue nozzle	When the surface of the material is uneven or the material is sticky, it is suitable to use the glue nozzle. However, the life of the glue nozzle is not long. It is recommended to buy more glue nozzles for spare when ordering the glue nozzle. When the nozzle is worn, you can just replace it with the rubber nozzle yourself

500 ASSY 1.0*0.5 JUKI Nozzle SMD Nozzle For SMT Production Line 0

Relative nozzles with part number for Juki series:

E35017210A0 JUKI NOZZLE 101 ASSY Ø 1.0x0.4
E35027210A0 JUKI NOZZLE 102 ASSY Ø 1.5x1.0
E35037210A0 JUKI NOZZLE 103 ASSY Ø3.0x1.7
E35047210A0 JUKI NOZZLE 104 ASSY Ø 4.0x3.2
E35057210A0 JUKI NOZZLE 105 ASSY Ø 6.5x5.0
E35067210A0 JUKI NOZZLE 106 ASSY Ø 9.0x8.0
E35517210A0 JUKI NOZZLE 201 ASSY Ø 3.5x1.0
E35527210A0 JUKI NOZZLE 202 ASSY Ø 5.5x3.2
E35537210A0 JUKI NOZZLE 203 ASSY Ø 8.5x5.0
E35547210A0 JUKI NOZZLE 204 ASSY Ø 9.0x8.0
E3600729000 JUKI NOZZLE 500 Ø 0.7x0.4
E36017290A0 JUKI NOZZLE 500 Ø 0.7x0.4
E36037290A0 JUKI NOZZLE 500 Ø 1.6x1.0
E36047290A0 JUKI NOZZLE 500 Ø 3.5x1.7
E36057290A0 JUKI NOZZLE 500 Ø 5.0x3.2
E36067290A0 JUKI NOZZLE 500 Ø 8.5x5.0
E36077290A0 JUKI NOZZLE 500 Ø 9.0x8.0
E36087290A0/40011046 JUKI NOZZLE 500 ASSY Ø1.0 X 0.5
E36007290A0/40001339 JUKI NOZZLE 501 ASSY Ø 0.7x0.4
E36017290A0/40001340 JUKI NOZZLE 502 ASSY Ø 0.7x0.4
E36027290A0/40001341 JUKI NOZZLE 503 ASSY Ø1.0x0.6
E36037290A0/40001342 JUKI NOZZLE 504 ASSY Ø1.5/1.0
E36047290A0/40001343 JUKI NOZZLE 505 ASSY 3.5/1.7
E36057290A0/40001344 JUKI NOZZLE 506 ASSY Ø5.0/3.2
E36067290A0/40001345 JUKI NOZZLE 507 ASSY Ø8.5/5.0
E36077290A0/40001346 JUKI NOZZLE 508 ASSY Ø8.5 /5.0
E36077290A0/40025165 JUKI NOZZLE 509 ASSY Ø0.1/0.4
E36157290A0 JUKI NOZZLE 510 ASSY Ø1.5/0.6
E36167290A0 JUKI NOZZLE 511 ASSY Ø2.0/1.2
E40017210A0 JUKI PICK UP NOZZLE
E40027210A0 JUKI PICK UP NOZZLE
E40057210A0 JUKI PICK UP NOZZLE
E40067210A0 JUKI PICK UP NOZZLE
E40077210A0 JUKI PICK UP NOZZLE
E40087210A0 JUKI PICK UP NOZZLE
E40097210A0 JUKI PICK UP NOZZLE
E40107210A0 JUKI PICK UP NOZZLE
E40117210A0 JUKI PICK UP NOZZLE
E40127210A0 JUKI PICK UP NOZZLE
E40137210A0 JUKI PICK UP NOZZLE
E40147210A0 JUKI PICK UP NOZZLE
E40167210A0 JUKI PICK UP NOZZLE
E40177210A0 JUKI PICK UP NOZZLE
E40187210A0 JUKI PICK UP NOZZLE
E40207210A0 JUKI PICK UP NOZZLE
E40217210A0 JUKI PICK UP NOZZLE
E40227210A0 JUKI PICK UP NOZZLE
E40237210A0 JUKI PICK UP NOZZLE
E40247210A0 JUKI PICK UP NOZZLE
E40257210A0 JUKI PICK UP NOZZLE
E40267210A0 JUKI PICK UP NOZZLE
E40277210A0 JUKI PICK UP NOZZLE
E40287210A0 JUKI PICK UP NOZZLE
E40297210A0 JUKI PICK UP NOZZLE
E40307210A0 JUKI PICK UP NOZZLE
E40317210A0 JUKI PICK UP NOZZLE
E40337210A0 JUKI PICK UP NOZZLE
E40347210A0 JUKI PICK UP NOZZLE
E40357210A0 JUKI PICK UP NOZZLE
E40367210A0 JUKI PICK UP NOZZLE
E40377210A0 JUKI PICK UP NOZZLE
E40387210A0 JUKI PICK UP NOZZLE
E40397210A0 JUKI PICK UP NOZZLE
E40417210A0 JUKI PICK UP NOZZLE
E40427210A0 JUKI PICK UP NOZZLE
E40437210A0 JUKI PICK UP NOZZLE
E40447210A0 JUKI PICK UP NOZZLE
E40457210A0 JUKI PICK UP NOZZLE
E40467210A0 JUKI PICK UP NOZZLE
E40477210A0 JUKI PICK UP NOZZLE
E40487210A0 JUKI PICK UP NOZZLE
E40497210A0 JUKI PICK UP NOZZLE
E40507210A0 JUKI PICK UP NOZZLE
E40517210A0 JUKI PICK UP NOZZLE
