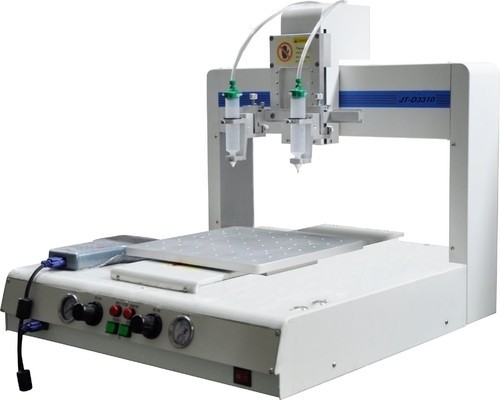

High-Speed Stepper And Timer Belt 4 Axis Glue Dispensing Machine
With LCD Screen Operation
Introduction to SMT dispensing machine
Glue dispensing machine: Glue dispensing machine, also known as
glue applicator, glue dispensing machine, glue dispensing machine,
etc., is an automated machine that specializes in controlling fluid
and dripping and coating the fluid on the surface of the product or
inside the product. The dispensing machine is mainly used to
accurately point, inject, apply and drip glue, paint and other
liquids in the product process to the precise position of each
product. It can be used to realize dotting, drawing lines, circular
or arc shapes.
Dispensing machine classification
1. According to the classification of operation mode, it can be
divided into: manual dispensing equipment, semi-automatic
dispensing equipment, and fully automatic dispensing equipment.
2. According to the glue, it can be divided into: single liquid
dispensing equipment, double liquid dispensing equipment,
multi-component dispensing equipment, etc.
3. According to the classification, it can be divided into: thread
dispensing equipment, speaker dispensing equipment, mobile phone
button dispensing equipment, patch dispensing equipment, board
wiper, etc.
4. According to the characteristics of glue, it can be divided
into: silicone glue dispensing equipment, UV glue dispensing
equipment, and SMT red glue dispensing equipment.
5. According to the number of control axes, it can be divided into:
two-axis dispensing equipment, three-axis dispensing equipment,
four-axis dispensing equipment, etc.
Machine feature
1. PC computer LCD screen operation, easy to program, easy to learn
and understand;
2. It has the functions of drawing points, lines, faces, arcs,
circles, and continually tween of irregular curves to realize any
3D non-planar track path;
3. The size of the glue, the speed of the glue, the time of
dispensing, and the time of stopping the glu e can all be
parameterized;
4. With the special dispensing controller, the glue output is
stable, the glue is clean and the glue is not leaked;
5. Quickly dot, draw lines and draw circles in the inner, outer
wall, vertical surface, gap and spherical surface of the product;
6. According to the needs of customers, it can be equipped with
fixtures, glue guns, controllers, heatingtemperature control
devices, etc.
7. Optional 1-4 head dispensing device, multiple glue guns at the
same time to double the work efficiency;
8. The software has functions such as regional display, translation
rotation operation, etc.
9. Adopt trapezoidal acceleration and deceleration, speed preview,
micro line interpolation and other technologies;
10. Configure high-speed, low-noise Japanese stepping motor with precise positioning,
quick response,stable performance and long service life.
How does the dispensing machine work?
The working principle of the dispensing machine is that compressed
air is fed into the glue bottle (syringe), and the glue is pressed
into the feed pipe connected to the piston chamber. When the piston
is on the up stroke, the piston chamber is filled with glue. When
the piston pushes downward When dispensing the glue needle, the
glue is pressed out from the needle mouth. The amount of glue
dripped out is determined by the distance of the piston's
downstroke, which can be adjusted manually or controlled through
programming.
Specification
| Model | HS-D441 |
| Power supply | 110V/220V 50-60Hz 350W |
| Glue Mixing Ratio | 1:1-10:1/Customizable |
| Dispensing Speed | 10-150g/5s(based on 1:1 glue proportion) |
| Dispensing Precision | Glue Amount±1%, Glue Proportion±1% |
| X/Y/Z Working Range | 400*400*100mm(Z axis can be rotated) |
| XYZ Speed | Max 300mm/s |
| Drive System | Stepping Motor + Timing Belt |
| Repeatability | ±0.02mm |
| Pattern | Lines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation |
| Potting Precision | Amount±1%, Ratio:±1% |
| Programming | Teach Pendant |
| Control | PLC |
| Leak-proof Function | Valve with Vacuum Device |
| Document Support | CAD, CorelDRAW |
| Weight | 40kg |
| Dimension(L*W*H) | 616*685*645mm |
