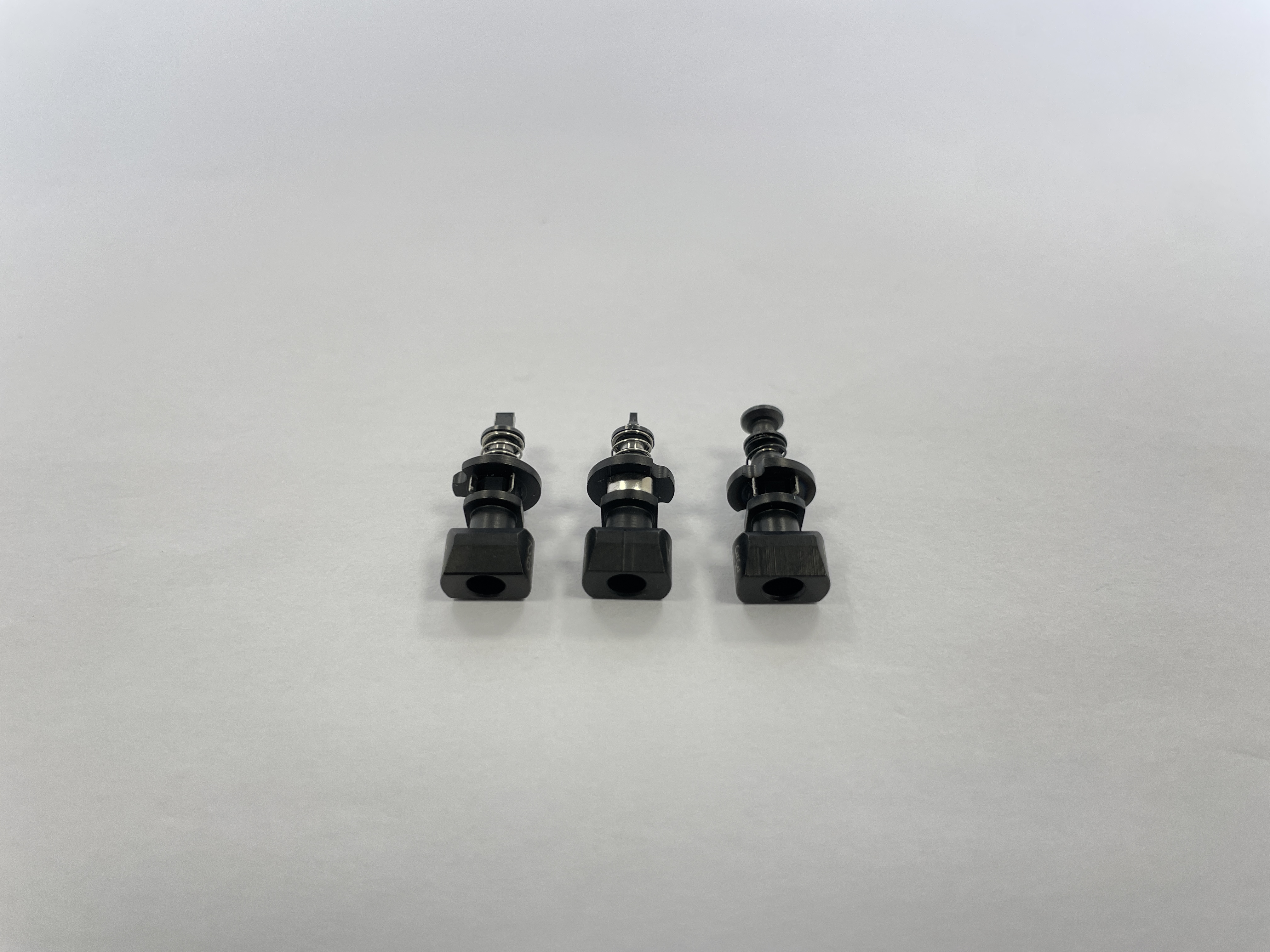

Sturdy Tungsten Steel SMT Nozzle for Yamaha YS12 Circuit Board
Mounting
Introduce
1. The suction nozzle is a key component of the placement machine,
used to pick up and place SMT components.
2. The suction nozzle uses vacuum adsorption to suck the
components, and blows air to place the components on the designated
position on the circuit board.
Mounter nozzle material:
1, tungsten steel suction nozzle: tungsten steel suction nozzle
sturdy, but easy to white, not afraid of trouble friends, Samsung
suction nozzle, or SMT newcomers can choose tungsten steel suction
nozzle, whitened with an oil-based pen coated, but also can
continue to use.
2, ceramic nozzle: ceramic nozzle white, but very brittle, easy to
break. Careful use can avoid or reduce the occurrence of breakage.
3, diamond steel nozzle: strong, good, white, but especially
expensive, cost-effective.
4, rubber tip nozzle: when the surface of the material is not flat
or sticky material, suitable for the use of rubber tip nozzle, but
the rubber tip nozzle life is not long, it is recommended to order
the rubber tip nozzle, samsung nozzle models, buy more rubber tip
spare, when the tip is worn out, you can directly replace the
rubber tip on their own.
Specifications
| Brand Name | Yamaha YS12 type NOZZLE |
| Part Number | YS12 |
| Warranty | 1 month |
| Usage for Machine | pick and place machine |
| Ensure | Test in machine before shippping |
| Guarantee | Original 100% and working |
| Package | Foam package+Plastic BOX+Carton Box |
| Application | SMT PCB Assembly Production Line |
| Delivery Methods | Ocean Transport, Air Transport, Air Express Services |
Features
1.The suction nozzle is a key part of the placement machine for
placing components.
2.It uses the adsorption effect of vacuum to absorb the components
and places the components on the coordinate position of the circuit
board by blowing air.
3.The center of the nozzle and the center of the component and the
spatial center of the image obtained should coincide to ensure
ideal suction results.
4.When the nozzle is used as the background, it can enhance the
contrast of the component image and make it more clearly visible.
YAMAHA YG12/YS12/YS 24 Series Nozzle
Yamaha YG12/YS12/YS24: KHN-M7710-A1 NOZZLE 301A ASSY
Yamaha YG12/YS12/YS24: KHN-M7710-A2 NOZZLE 301A ASSY
Yamaha YG12/YS12/YS24: KHN-M7711-01 BODY,NOZZLE
Yamaha YG12/YS12/YS24: KHN-M7711-02 BODY,NOZZLE 301
Yamaha YG12/YS12/YS24: KHN-M7711-03 BODY,NOZZLE 301
Yamaha YG12/YS12/YS24: KHN-M7713-00 SPRING
Yamaha YG12/YS12/YS24: KHN-M7713-00 SPRING
Yamaha YG12/YS12/YS24: KHN-M7714-00 PIN
Yamaha YG12/YS12/YS24: KHN-M7715-00 CLIP
Yamaha YG12/YS12/YS24: KHN-M7720-A1 NOZZLE 302A ASSY.
Yamaha YG12/YS12/YS24: KHN-M7721-01 BODY,NOZZLE 2
Yamaha YG12/YS12/YS24: KHN-M7721-02 BODY,NOZZLE 302
Yamaha YG12/YS12/YS24: KHY-M7740-A0 NOZZLE 303A/314A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7741-00 BODY,NOZZLE 303/314
Yamaha YG12/YS12/YS24: KHY-M7750-A0 NOZZLE 304A/315A ASSY.
Yamaha YG12/YS12/YS24: 90990-17J013 O-RING
Yamaha YG12/YS12/YS24: KHY-M7770-A0 NOZZLE 306A/317A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7771-00 BODY,NOZZLE 306/317
Yamaha YG12/YS12/YS24: KHY-M77A0-A0 NOZZLE 310A ASSY.
Yamaha YG12/YS12/YS24: KHY-M77A1-00 BODY,NOZZLE 310A
Yamaha YG12/YS12/YS24: KHY-M7710-A0 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7710-A1 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7710-A2 NOZZLE 311A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7711-00 BODY,NOZZLE 311
Yamaha YG12/YS12/YS24: KHY-M7711-01 BODY,NOZZLE 311
Yamaha YG12/YS12/YS24: KHN-M7713-10 SPRING
Yamaha YG12/YS12/YS24: KHY-M7720-A0 NOZZLE 312A ASSY.
Yamaha YG12/YS12/YS24: KHY-M7720-A1 NOZZLE 312A ASSY.
We sell SMT Nozzles of all brand ,such as YAMAHA, Panasonic,
FUJI,JUKI,SAMSUNG ,etc.
About Us:
Shenzhen Hansome Technology Co.,Ltd is a professional SMT board
handling equipment (Loader,Unloader,Buffer Conveyor,Soldering
Machine,Screw Fastening Machine,PCB Depaneling
Machine,etc)manufacturer.
We are a high-tech enterprise with independent intellectual
property riahts, the company is mainly enaaged in the research and
development, production and sales of SMT/THT production line board
handling equipment.
We have more than 10 years' professional SMT industry experience.
With strict production,inspectiondebugging and packaging process,
we insist on providing clients with good service pre-sales,
in-salesand after-sales services. We have professional QC person to
check the quality of the equipment andspare parts. After
manufacturing, all equipment will be carefully tested and debugged
before shipment.
