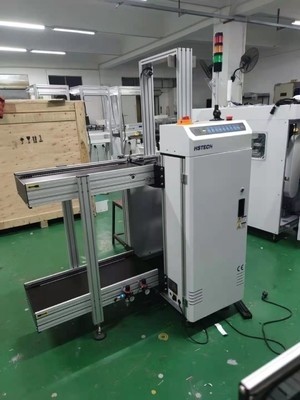

Touch Screen PLC Control System PCB Unloader Handling Equipment
with 6 Magazines Loading Capability
introduce:
SMT loading machine is a kind of production equipment needed for
SMT production and processing of electronic products. Its main
function is to place the unmounted PCB board in the SMT loading
machine and automatically send the board to the suction machine.
Then the suction machine automatically places the PCB on the track
of the solder paste printing machine and sends it to the solder
paste printing machine.
Perform solder paste brushing operation:
1. Turn on the power supply. Turn on the power switch.
2. Adjust the width of the guide rail until it is consistent with
the width of the PCB board to be produced.
2. Setting the number of board feeding steps and the board exit
point position (needs to be in manual state and the lifting
platform is at the lower limit position):
1. Step distance setting: press the button to select Pitch 1 2 3 4
2. Board adjustment:
3. Manually adjust the push rod in the middle of the PCB to be
produced.
4. Confirm that the machine can feed the board smoothly (the
position of the board output point)
5. Press the automatic key (switch to automatic)
6. Press the reset button (the lifting platform automatically drops
to the lower limit point and then rises to the position of the
first plate release point)
7.Automatic state
Features:
1, PLC Control system
2, Dual tracks and dual lift platforms design
3, 6 magazines loading capability
4, Designed gas circuit for transmit PCB smoothly and stably
5, Standard SMEMA
Specification:
| Type | DU-250 | DU-300 | DU-400 | DU-500 |
| Power Supply | AC110V/AC220V 50H60Hz | AC110V/AC220V 50H60Hz | AC110V/AC220V 50H60Hz | AC110V/AC220V 50H60Hz |
| Air Supply | 5kgf/C M2 | 5kgf/C M2 | 5kgf/C M2 | 5kgf/C M2 |
| PCB Size(mm) | 350*50~250 | 445*50~330 | 530*50~390 | 535*50~460 |
| PCB Direction | left to right or right to left | left to right or right to left | left to right or right to left | left to right or right to left |
| Magazine Size(mm) | 335*320*565 | 460*400*565 | 535*460*565 | 535*530*565 |
| Step pitches(mm) | 10,20,30,40 | 10,20,30,40 | 10,20,30,40 | 10,20,30,40 |
| Transport Height(mm) | 900±20 | 900±20 | 900±20 | 900±20 |
| Transmission Speed | 6m/S | 10m/S | 10m/S | 10m/S |
| Main Motor Power | 440W | 440W | 440W | 440W |
| Machine Size(mm) | 1510*1530*1250 | 1910*1630*1250 | 2160*1760*1250 | 2160*1900*1250 |
| Weight(kgs) | 320 | 350 | 380 | 410 |
