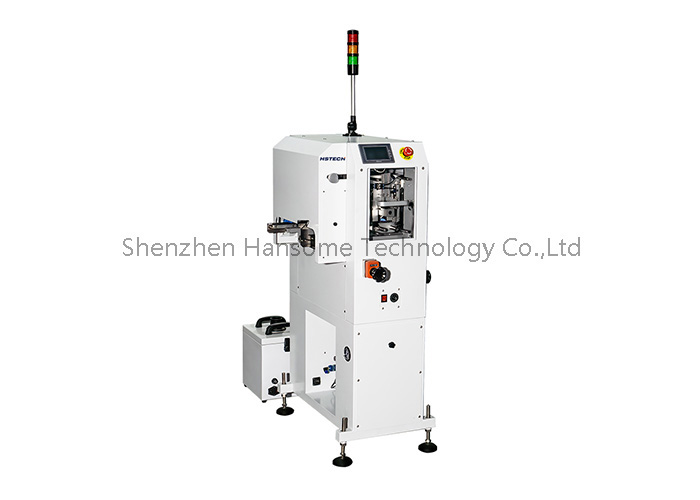

PCB Handling Equipment with Brush Sticker Roller PCB Cleaning
Machine
Introduction
This In-line PCB Surface clean machine used for PCB before printing
solder paste and red glue to remove surface small chip ,
dust,fiber,hair,skin debris and metal particles etc.other
things.Eliminate PCB board static to reduce the bad printing and
foreign object caused cold welding ,missing weld,camber and
deflection welding, improve products quality .Greatly reduce rework
and bad quality return rate.Especially suitable for place
0402,0201etc small components and QFP,BGA,CSP precision components.
Specification
| Model | HS-250BC | HS-330BC | HS-390BC | HS-460BC |
| PCB dimension | (50*50)~(350*250) | (50*50)~(460*330) | (50*50)~(530*390) | (50*50)~(530*460) |
| Machine dimension | 555*820*1350 | 555*900*1350 | 555*960*1350 | 555*1030*1350 |
| Weight | 80kg | 90kg | 100kg | 110kg |
| PCB thickness | 0.4~5mm |
| Power supply | AC100~230V,single phase,300A |
| Air supply | 0.4~0.6Mpa |
| Cleaning brush | top 2 pcs |
| Sticker roller | top 1 pc |
| Brush | ESD,high precision brush |
| If with dust collector | Yes |
| Transport speed | 0~9m/min,adjustable |
| Transport height | standard 900±20mm |
| Direction | L to R, or R to L,optional |
| Cycle time | Around 8s |
Features
1, According to the SMT production line requirements develop and
design equipment.
2, PLC control system.
3, Ultra-high speed anti-static spiral brush, vacuum extraction
clean Method .
4, Special corresponding SMT printing, mount before and after AI
plug-in PCB board on the back of the foreign body clean.
5, Equipped with the Keyence brand static climinators, completely
eliminate electrostatic interference.
6, Touching clean method, cleanness above 99%.
7, Designed to clean the roller to ensure efficient, stable,
lasting cleaning effect.
8, Mechanical parts draw-out design, maintenance is simple.
9, Interface display in English and Chinese, interface operation
convenient and simple.
10, SMEMA signal compatible.
COMPANY PROFILE
Shenzhen Hansome Technology Co.,Ltd(HSTECH)is a professional
professional SMT board handlingequipment(Loader,Unloader, Buffer,
Conveyor,etc)manufacturer, We are a high-tech enterprise with
independent intellectual propertyrights,the company is mainly
engaged in the research and development, productionand sales of
sMT/THT production line board handling equipment.We have
professional technicians & sales,relies on high-tech and tries our
best tosupply high efficient and reliable board handling to our
customers. At the same time,our experienced engineering team always
grasps smart factory's developing directionupdates the products and
technical according to the market demand, pursuit to makemore
automation and cost-effective product all the time, we also do the
OEM basedon different needs of our customer.
We have more than 10 years' professional SMT industry experience.
With strict production,inspectiondebugging and packaging process,
we insist on providing clients with good service pre-sales,
in-salesand after-sales services. We have professional QC person to
check the quality of the equipment andspare parts. After
manufacturing, all equipment will be carefully tested and debugged
before shipment.
