Automatic Solder Paste Thawing Machine with Multiple Slots for
Temperature Control
Introduction
Automatic solder paste thawing machine, also called solder paste
aging machine, with the timer, the machine can easily achieve the
control of the solder paste temperature warm up time, which can
save much time to record the time of solder paste back to the
ambient temperature after take out off the refrigerated room. It is
a efficiency way to control the temperature of the solder paste,
make sure the activity of the solder paste, ensure the printing
quality, better to control the production plan, improve production
efficiency.
Features
1. Fully automatic timed solder paste rewarming machine. One
machine has multiple slots and can intelligently reheat multiple
cans of solder paste at the same time to ensure the activity of the
solder paste; the steel plate of this machine has a baked-painted
appearance, with a smooth and tidy surface, fashionable and
beautiful.
2. The machine is assembled and produced using imported electrical
components.
3. Each can of solder paste is placed in a slot with independent
time control. Once the time is set, the solder paste slot will
automatically lock. The door cannot be opened before the timer
expires. When the set temperature recovery time is reached, the
slot will be locked. It will unlock automatically.
4. The machine can be operated with multiple tanks for temperature
recovery, and each slot can hold 500G solder paste tanks.
5. With FIFO fuction.
6. In the case of out of power accidently,even if not reach setted
time, solder paste bottle will automatically pop up.
7. Equipped with a automatic alarm system,when reach the setting
time, this machine will automatically alarm. Also there is a
emergency stop button for emergency suitation, easy operation and
security.
Specification
| Model | HS-SP-10N |
| Control system | PLC |
| Assemblying parts | Import parts |
| Power | AC220V, 50Hz |
| Air Pressure | 0.4Mpa |
| Placing tank | 10 tanks |
| Machine Demension | 500*300*220mm(W*D*H) |
| Gross Weight | 16KG |
| Machine name | Fully automatic solder paste reheating machine | product brand |
| Operating mode | voltage mode | Product net weight: 16kg |
| Operating Voltage | AC220V 60HZ | Product material: steel plate spray paint |
| Product Size | Four slots L670*W220*H335mm Tank size: length 150*depth 100*height 110mm |
| Ability to work | The solder paste and red glue reheating machine/defrosting machine
can be used with solder paste in the slot and needle-type red glue
(all small red glue with a total length of less than 120MM can be
used), and the solder paste and red glue can be switched
intelligently. New and old customers can choose from
4/5/6/8/10/12/14 workstations to 30 workstations. Non-standard can
be customized. Supports 250G/500G solder paste, total length less
than 120MM needle tube red glue. |

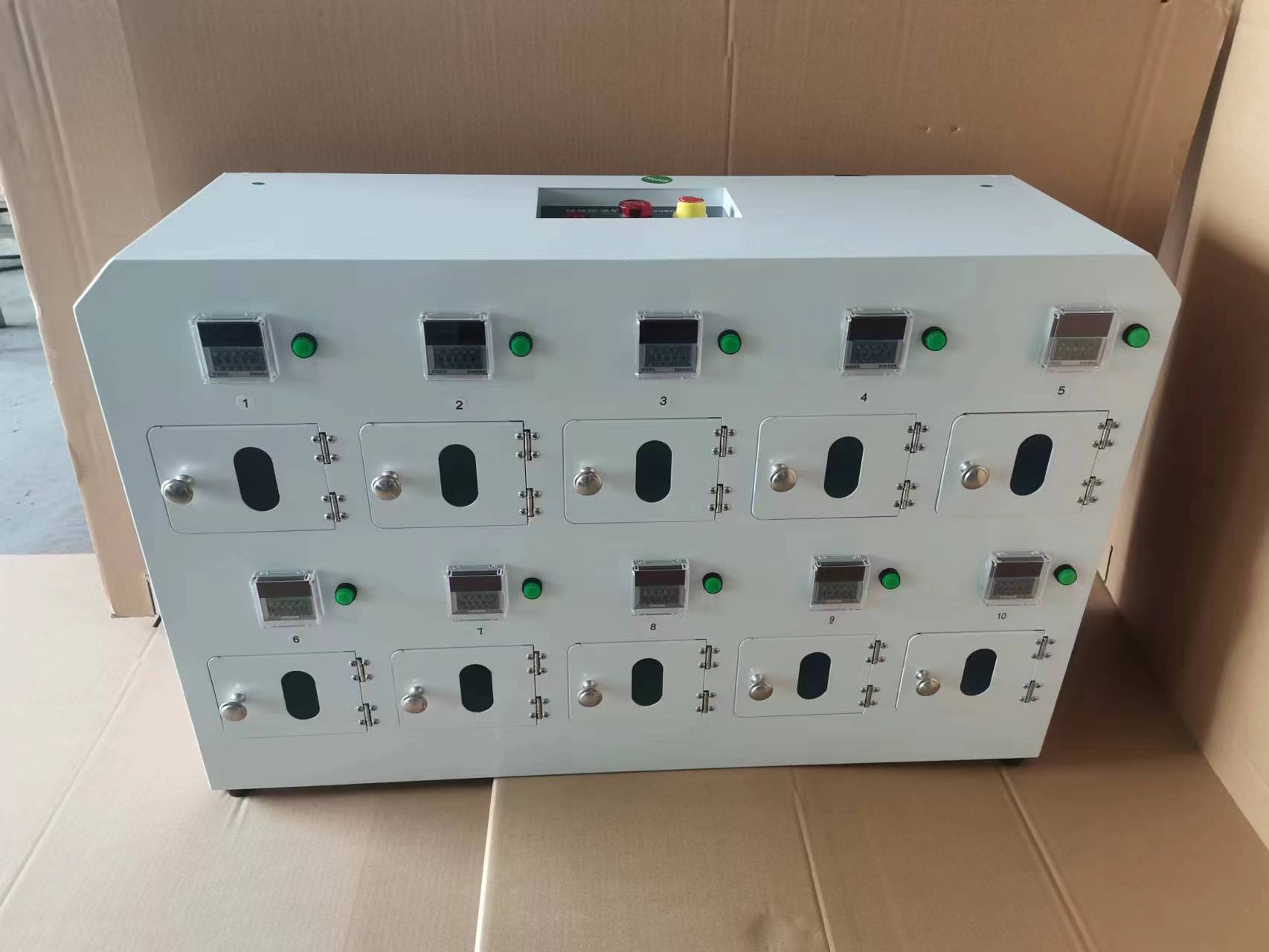

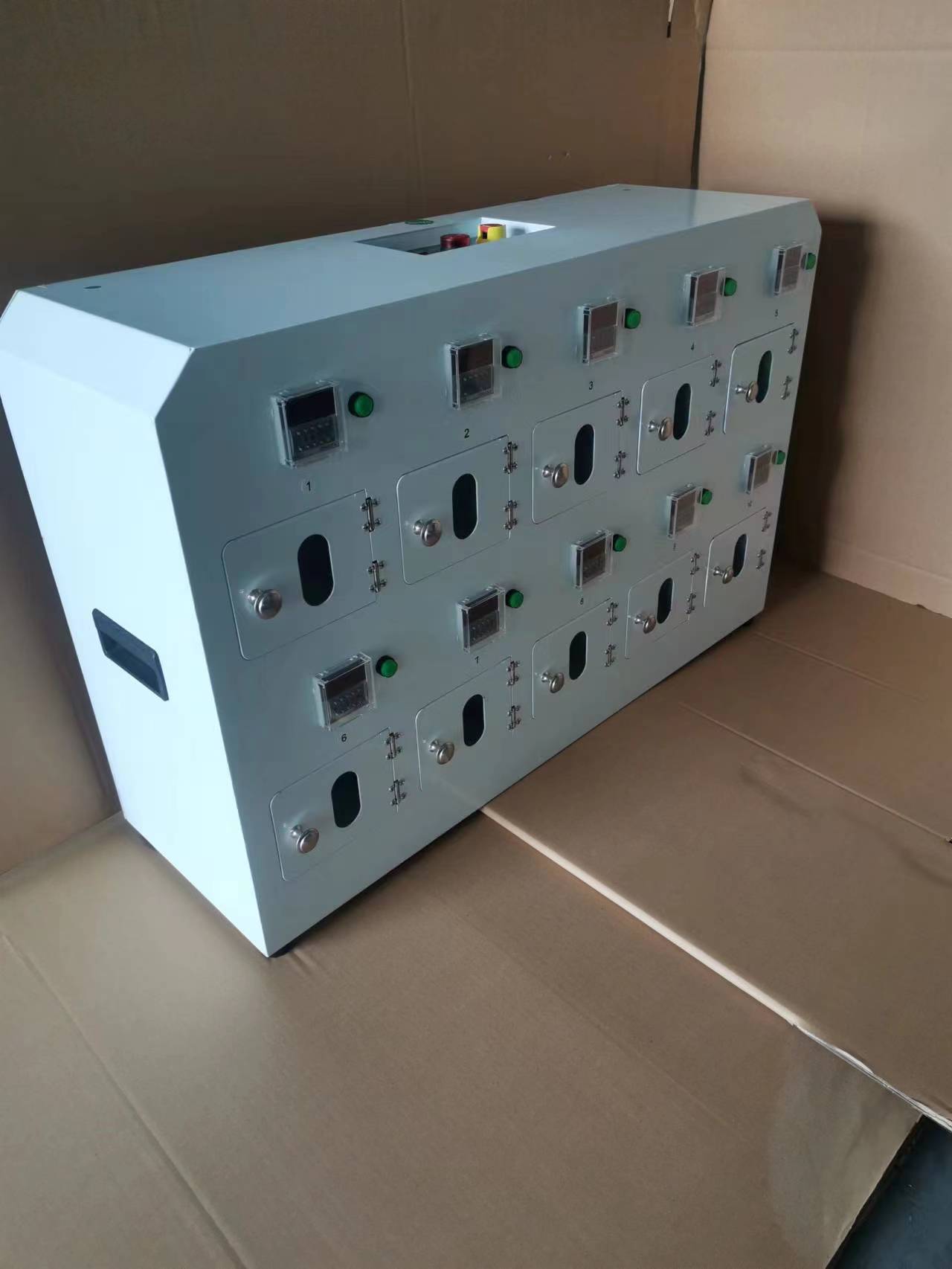

Product physical picture
