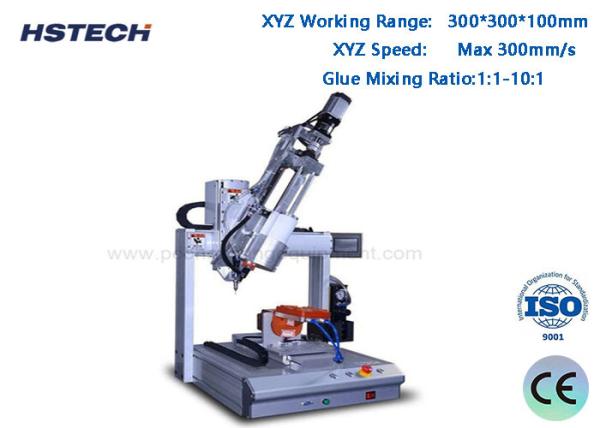

    4 Axis AB Glue Dispensing Machine Stepping Motor + Timing Belt Max 300mm/s

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : HS-D331AB
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 7~9 work days
    • Product Details
    • Company Profile

    4 Axis AB Glue Dispensing Machine Stepping Motor + Timing Belt Max 300mm/s

    4 Axis AB Glue Dispensing Machine Stepping Motor + Timing Belt Max 300mm/s


    Machine feature
    1. PC computer LCD screen operation, easy to program, easy to learn and understand.
    2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path.
    3. The volume of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glue can all be programmed.
    4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked.
    5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product.
    6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heating temperature control devices, etc.

    Specification

    ITEMSPEC
    Glue Mixing Ratio1:1-10:1/Customizable
    Dispensing Speed10-150g/5s(based on 1:1 glue proportion)
    Dispensing PrecisionGlue Amount±1%, Glue Proportion±1%
    X/Y/Z Working Range300*300*100mm(Z axis can be rotated)
    XYZ SpeedMax 300mm/s
    Drive SystemStepping Motor + Timing Belt
    Repeatability±0.02mm
    PatternLines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
    Potting PrecisionAmount±1%, Ratio:±1%
    Operation MethodAuto
    ProgrammingTeach Pendant
    ControlBoard card
    Leak-proof FunctionValve with Vacuum Device
    Weight65kg
    Dimension(L*W*H)716*585*645mm
    Power Supply220V 50-60Hz 350W
