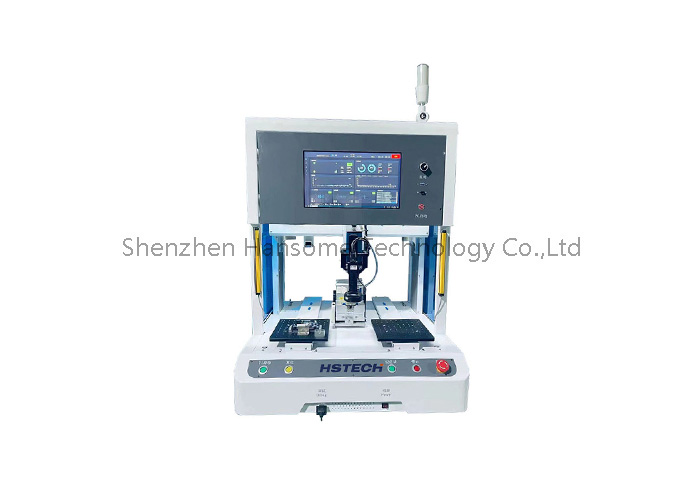

4 Axis Automation Screw Locking Machine with Double Working Station

Ask Lasest Price
Brand Name :	HSTECH
Model Number :	HS-SL5331
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	100pcs per month
Delivery Time :	7~9 work days

Add to Cart

Product Details
Company Profile

4 Axis Automation Screw Locking Machine with Double Working Station

High Accuracy 4 Axis Automatic Screw Locking Robot with Feeder

1.Our automatic locking screw machine can be non-standard customised.
2. Automatic locking screw machine see parameters, more consulting customer service.
3.Automatic locking screw machine is an alternative to manual manual locking screws automation equipment, automatic screwdriver fixed place, automatic locking screws, all the actions of the equipment is automatically completed.
4. With the increasingly high cost of business, labour rise, automatic locking screw machine will replace most of the locking screws station, its operation is simple and easy to use, more efficient.

Features

1, Suction feeding, single screw feeder, also can customized to double feeder.
2, Using high quality electric screwdriver for Z axis moving.
3, 4 Axis operation, moving range 500*300*300*100mm.
4, Double working station, the operator can loading the product one by one, great improve the production efficiency and reduce labor cost.

5, Accurate torsion, convenient adjustment, guaranteed the production quality.

6, Easy adaptability for M1-M6, just by changing screw guider(Customization available).

7, With the function of leak detection, if a screw did not fill in place it can fill continually or alarm.

8, The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

Specification

Model	HS-SL5331
Production name	4Axis Automatic Screw Locking Machine
Moving range(X/Y1/Y2/Z)	500300300*100mm
X/Y1/Y2 axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y1/Y2 axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M6
Machine dimension	746585800mm
Machine weight	65kg

Main parts brand

1, Motor: Shinano 2, Guide: Hiwin 3, Photoelectric switch: Omron 4, Power supply: Meanwell
