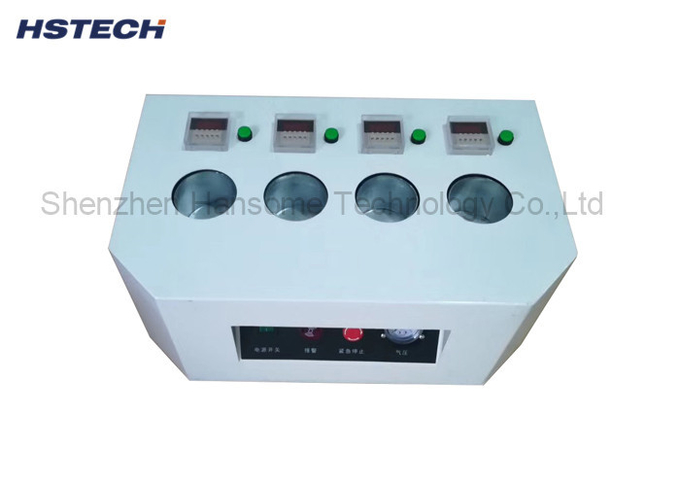

High Efficiency Automatic Solder Paste Thawing Machine With 0.4Mpa Air Pressure

Shenzhen Hansome Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap High Efficiency Automatic Solder Paste Thawing Machine With 0.4Mpa Air Pressure from wholesalers

    Buy cheap High Efficiency Automatic Solder Paste Thawing Machine With 0.4Mpa Air Pressure from wholesalers
    • Buy cheap High Efficiency Automatic Solder Paste Thawing Machine With 0.4Mpa Air Pressure from wholesalers
    • Buy cheap High Efficiency Automatic Solder Paste Thawing Machine With 0.4Mpa Air Pressure from wholesalers

    High Efficiency Automatic Solder Paste Thawing Machine With 0.4Mpa Air Pressure

    Ask Lasest Price
    Brand Name : HSTECH
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100 sets per month
    Delivery Time : 7~9 work days
    • Product Details
    • Company Profile

    High Efficiency Automatic Solder Paste Thawing Machine With 0.4Mpa Air Pressure


    High Efficiency Automatic Solder Paste Thawing Machine With 0.4Mpa Air Pressure


    Features


    1, Each tank of solder paste placement slot has an independent LED display time controller. After setting the time the solder paste will be fixed in the slot and sink automatically,also it will release automatically when time is over.
    2. With FIFO fuction.

    3. In the case of out of power accidently,even if not reach setted time, solder paste bottle will automatically pop up.

    4. Equipped with a automatic alarm system,when reach the setting time, this machine will automatically alarm. Also there is a emergency stop button for emergency suitation, easy operation and security.
    Specification
    ModelHS-SP-4N
    Control systemPLC
    Assemblying partsImport parts
    PowerAC220V, 50Hz
    Air Pressure0.4Mpa
    Placing tank4 tanks
    Machine Demension500*300*220mm(W*D*H)
    Gross Weight16KG

    The advantages of the machine


    A, The natural temperature thawing can keep the activity of the flux, which the mixing thawing
    can not solve the problem.
    B, Use the solder paste thawing machine can control the solder paste to the room
    temperature,which will help control the production, improve the efficiency.
    C, Use this machine means control the first process of the SMT production, this is the first step to produce a good quality product.

    AC 220V Solder Paste Aging Machine FIFO Function Standard Size With Automatic Timing 0
