    SMD Component Counter Cover Tape: Transparent Hot Sealing PET Material, 0.2Mpa Sealing Pressure, Width 9.3mm

    SMD Component Counter Cover Tape: Transparent Hot Sealing PET Material, 0.2Mpa Sealing Pressure, Width 9.3mm


    Introduction


    The cover tape is sealed to the carrier tape to hold the devices in the pockets. We offers a full range of cover tapes to meet various requirements.


    Cover tape specification


    NameCover tape
    MaterialComposite material
    Calculation unitMeter
    Tape width9.3mm
    Tape specs300M per reel
    ColorTransparent
    Sealing pressure0.2Mpa
    MOQ200meters
    Cover tapehot sealing
    ReelsAvailable

    Carrier tape size and matched cover tape


    Carrier Tape(mm)81216243244567288104
    Cover Tape(mm)5.49.313.321.325.537.549.565.581.597.5

    Features


    1, Stable pelling force stress, and the component is not moved when peeling off.

    2, Tensile Strength:20-110GF

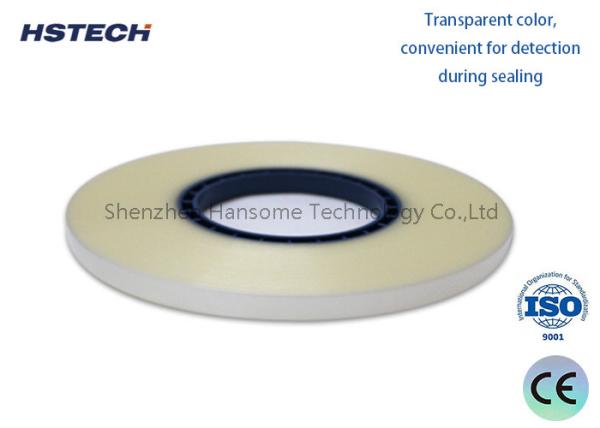

    3, Transparent color, convenient for detection during sealing.

    4, Multiple options for cover tape width, 5.4/9.3/13.3/21.3/25.5mm,etc.also can be custom according to the requirement.


    Production process


    Coating
    The silicone release polyester film isapplied to the coating machine to addaqueous silicone coating composition.


    Slitting
    After the silicone release polyester filmis coated, the roll is applied to the slitterrewinder where it's unwound and runthrough knives, before being rewoundon shafts to form narrower rolls.


    Packaging
    The finished products are packaged ina standard transport package designedto provide protection during handling!storage,and transportation.
