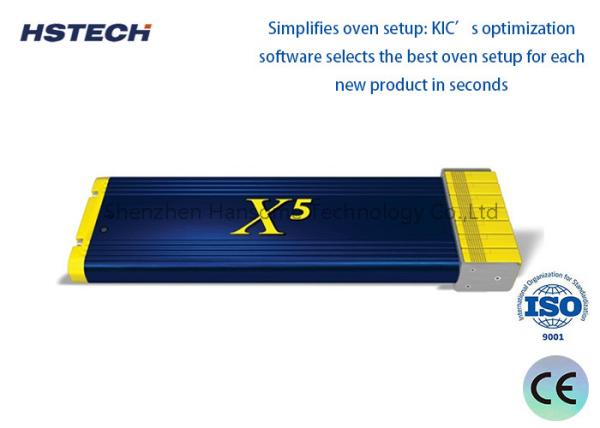

7 Channels Standard Type K Thermocouple KIC X5 Thermal Profiler
with USB Cable
Introduction
With 7, 9, and 12-channel models, the X5 is able to acquire a lot
of data, allowing you to precisely evaluate each thermal profile
and process in your factory. Measure slope, peak temperature, time
above liquidous, and more. Data is transferred to your computer via
a USB cable or, for RF models, wirelessly through radio frequency
transmitters—no cable connection required.
Specifications
| Model | KIC X5 |
| Dimension | 7-channel: 206 x 60 x 17 mm,with shield: 302 x 75 x 23 mm
9-channel: 206 x 75 x 17 mm,with shield: 312 x 90 x 23 mm
12-channel 206 x 98 x 17 mm,with shield: 323 x 113 x 23 mm |
| Accuracy | ± 0.5˚C |
| Resolution | 0.1˚C |
| Interal operating temp | 0˚C~85˚C |
| Sample rate | 0.1 to 10 readings/sec |
| Data points | 224,640 |
| Data transfer | Standard model
USB 2.0 (Std-A/Mini-B) after datalogging run
RF model
Wireless over RF (radio frequency 433.92 MHz), sent real-time
during datalogging run, or via USB 2.0 (Std-A/Mini-B) after
datalogging run |
| Power | 3 AAA batteries, USB cable when connected to a computer |
| Thermocouple Capacity | Type K, standard (7, 9, or 12, depending on model) |
| Thermocouple Temperature Range | -150˚C to 1050˚C |
| Thermal shield | Cool Touch Stainless Steel 7 or 9 channel |
Computer Configuration
Minimum System Requirements | Dual Core / 1 GHz processor PC w/2 GB RAM
2 GB available storage
Video 1024 x 768 resolution, 16-bit
1 available USB port for data download
1 available USB port for software key |
1.When the instrument overheats or the battery level is too low, it
will automatically give an indication and stop the temperature
curve test.
2. Automatic retrieval can ensure the integrity of temperature
curve data.
3. Automatic confirmation of production process stability.
4. Import automatic thermocouple position settings.
5. Automation of temperature curve evaluation.
6. Automatic visualization operation instructions.
