Air Blowing Type Feeding Blowing Type Screw Locking Machine

Ask Lasest Price
Brand Name :	HSTECH
Model Number :	HS-SL331
Certification :	CE
Price :	Negotiable
Payment Terms :	T/T, Western Union, MoneyGram
Supply Ability :	100 sets per month
Delivery Time :	7~9 work days

Add to Cart

Product Details
Company Profile

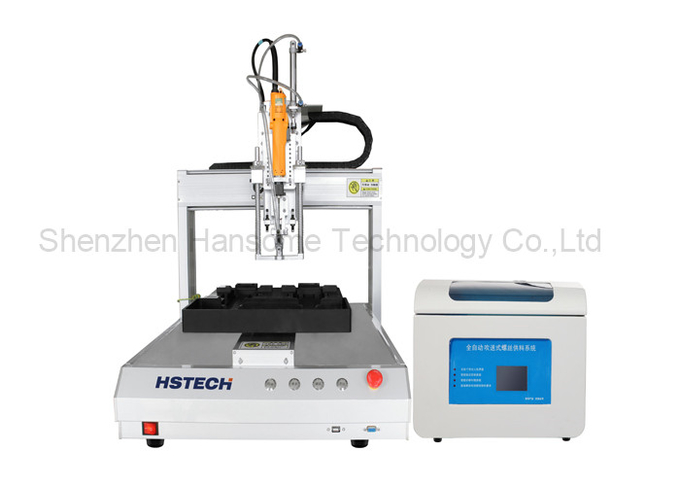

Air Blowing Type Feeding Blowing Type Screw Locking Machine

Air Blowing Type Feeding Blowing Type Screw Locking Machine

Introduction:

This screw locking/fastening machine using bolwing type feeding, equipped with a smooth screw feeder, the screws absord the screws into the pipe, and to the electric batch automatically, to achieve the automatic operation, the machine is desktop, which can see the whole process by eyes.

Specification:

Model	HS-SL331	HS-SL441
Production name	Automatic Screw Locking Machine
Moving range(X/Y/Z)	300300100mm	400400100mm
X/Y axis moving speed	Closed loop motor :1-800mm/s
Z axis moving speed	Closed loop motor: 1-300mm/s
X/Y axis max load	Closed loop motor: 5KG
Z axis max load	Closed loop motor: 3KG
Power supply	AC110V/220V, 50/60Hz
Repeat accuracy	±0.02mm
Document support	CAD CorelDraw
Suitable screws	M1-M5
Machine dimension	546585800mm	646685800mm
Machine weight	35kg	40kg

Features:

1, Air blowing type feeding, more efficiency.
2, Desktop and visible operation, can connect the automatic production line.
3, The handheld box adopts 320*240 high-resolution color screen and full English operation interface, easy to learn and use.
4, The machine standard use blowing feeding, but also available for suction feeding.
5, Support multiple screw bins in suction mode.
6, Support extended applications, such as locking screw dispensing, welding, testing, handling, assembly, etc.
7, Available for multiple axis and double platform options.
8, With regional array replication, platform replication, batch editing, single-step operation and other functions.
9, After the operation parameters are edited, the action parameters are downloaded to the controller through the serial port, and the operation can be performed offline. Action parameters can also be saved In the hand-held box, easy to call.
10,The machine can store hundreds of processing files, each file can support 1000 screw bits, you can call it out when you use it.

Automatic Screw Locking Machine w/ Blowing Type Feeding 0

Automatic Screw Locking Machine w/ Blowing Type Feeding 1
