    400mm Length PCB Depaneling Equipment with Imported High-Speed Steel Blade

    Ask Lasest Price
    Brand Name : HSTECH
    Model Number : HS-300
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union, MoneyGram
    Supply Ability : 100pcs per week
    Delivery Time : 5-7 work days
    • Product Details
    • Company Profile

    400mm Length PCB Depaneling Equipment with Imported High-Speed Steel Blade

    Adjustable 400mm Length PCB Separator Cutter Machine with Induction Function


    Introduction

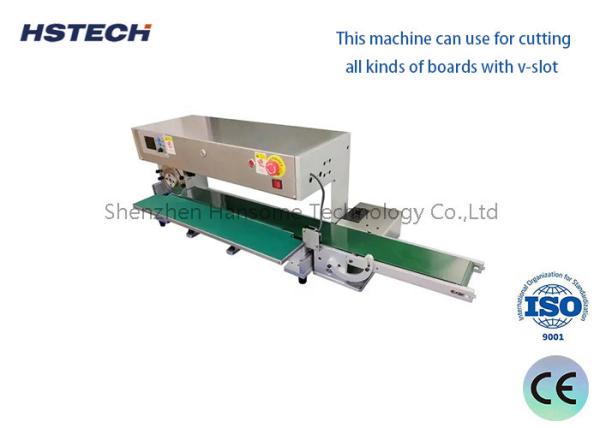

    This machine(HS-300) is the blade moving PCB separator, using upper circular and down linear blade design,before cutting, put the v-groove onto the linear blade,the upper circular blade moving to finish spearating, the force stress is relative low, the board don't need move will protect the components on the board, avoid damaging.


    Features


    1. The tool material is imported SKH7 high-speed steel. Long service life, the blade can be reground when unfavorable.

    2.The upper knife is installed to protect the blade, safe operation, to prevent accidental collision safety and security.

    3.With infrared sensing device for safety protection, when human hands or foreign objects enter the working area, the knife will stop to avoid injuries caused by human negligence.

    4.Installation of high-frequency eye protection lighting device to prevent work errors when operating in the shadow environment and enhance the efficiency of the operator.

    5.Increase the conveyor belt line, split the board can automatically flow out, improve the efficiency of split boards.


    Specification


    ModelHS-300
    Voltage110V/220V(optional)
    Power100W
    Efficient cutting length5-360mm
    Blade sizeCircular blade φ125*3mm, Linear blade 360*45*6mm
    Blade materialImport high quality high speed steel tool
    Separating speed300mm/s
    V-cut thickness1/3 of the board
    Separating widthBest 1-200mm
    Machine size620*320*450mm
    Weight50kg

    About Packaging
