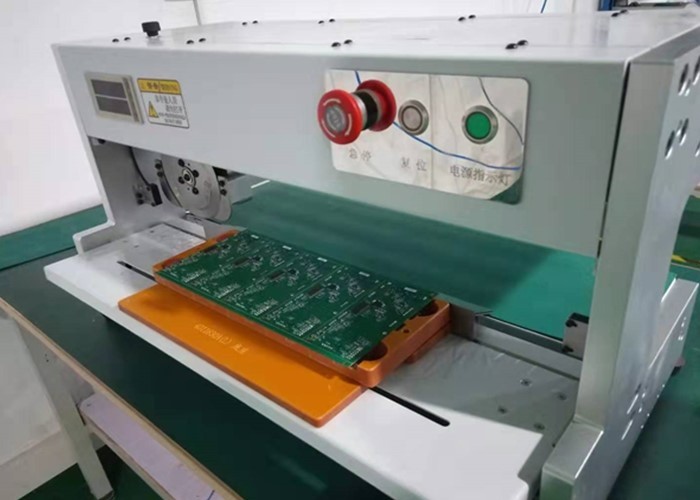

Moving Blade Type PCB Separator Machine PCB Separator Machine 600mm
Traveling Distance With Light Curtain
Introduction

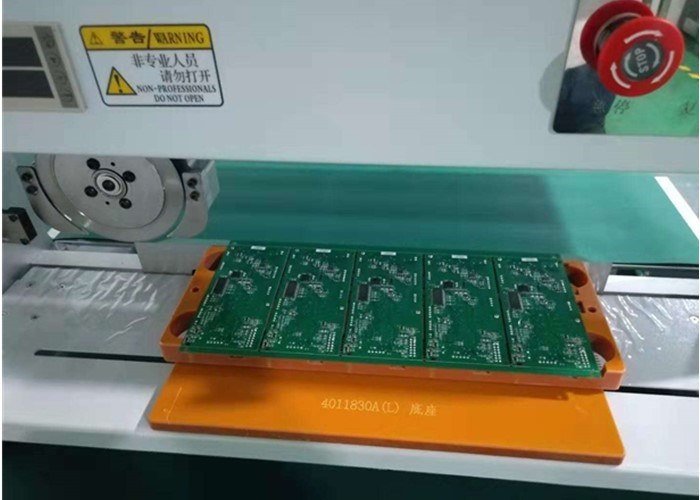

This machine adopt Japan brand high speed steel balde as the
cutting tool, use circular and linear blade combination to finish
the separating process, linear blade fix the PCB on the bottom, and
circular blade moving to cutting the entire printed circuit into
small pcs PCB. It's a eady and convenient PCB separating machine,
suitable for cutting all kinds materials boards with the V-groove,
like the aluminum board, fiber-glass board, LED board,etc.
Features
1, The upper and lower blades are made of HKD11 Japan brand
high-speed steel, which can be sharpen many times and repeatedly
use.
2, Traveling distance max at 600mm, if need longer also can be
customized, the height of upper circular blade can be adjusted
range at 0-5mm, the user's manual will teach how to do the
adjustment.
3, Maximum board cutting width is unlimited, best at 50-200mm.
4, The whole machine is made of stainless steel structure, very
stable and ensure the cutting precision.
5, Cutting speed(circular blade moving speed) can be setted freely.
6, Digital display show the cutting speed, and production quantity.
7, Air pressu
Specification
| Model | HS-203 | HS-206 |
| Principle | Linear blade insert into board V-slot, circular blade moving cutting |
| Blade | Bottom linear balde, upper circular blade |
| Voltage | AC110V/220V 50/60Hz |
| Blade size(circular blade) | ϕ125mm*30mm*3mm |
| Blade size(linear blade) | 420mm×65mm×6mm |
| Max cutting length | 5~400mm | 5~600mm |
| PCB thickness | 0.8~3mm |
| Separation speed | 300~500mm/second(adjustable) |
| Separation width | Best 1~200mm |
| Components height | ≤32mm( or customized) |
| Power | 60W |
| Machine dimension | 710x450x420mm | 900x450x420mm |
| Weight | 55kg | 75kg |
Application
(Suitable for all kinds of V-groove PCB board:FR4, aluminum
board,fiber glass board, LED board, LED strip board)
