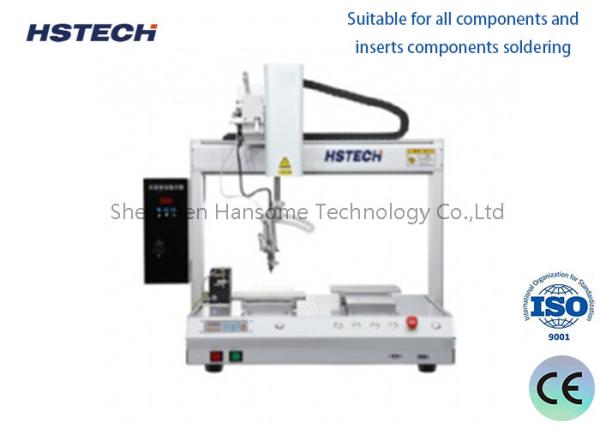

Double Working Station Automatic Soldering Robot, 300-450°C Welding
Temp, High Quality Heating
Features
1. Desktop type, can be placed on the production line.
2. Optional Full English marked machine body, to be international
application.
3. Double Y axis type, automatic working alternatively, saving the
time of placing object.
4. Perfect soldering program, with spot/line/circle soldering
function.
5. Can set the length of the Tin, pre-heat time, soldering time,
height of backward.etc parameter.
6. With auto cleaning soldering tip function.
7. Interface both English and Chinese available.
8. Fixture and tooling available.
Specification
| Model | HS-S5331R |
| Voltage | AC110V/220V,50/60Hz |
| X/Y1/Y2/Z working range | 500*300*300*100mm |

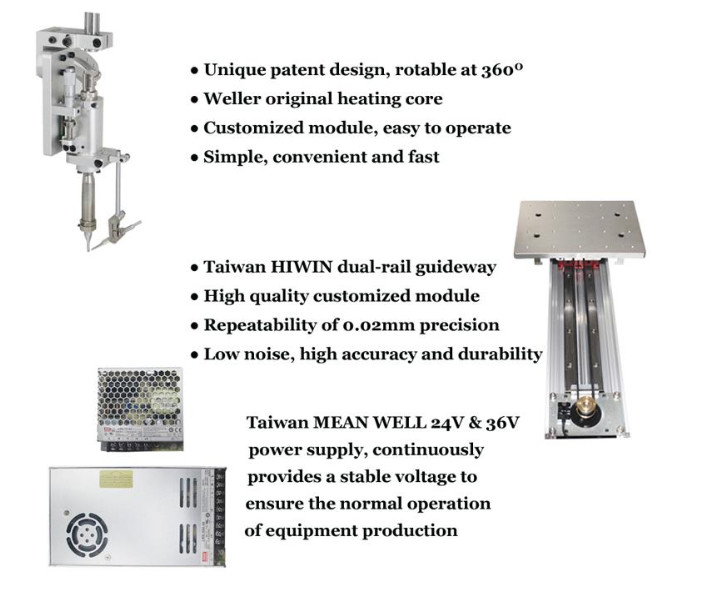

| R axis | 360 degree |
| X/Y1/Y2/Z moving speed | max 300mm/s |
| Driven system | Stepper motor,timing belt |
| Linear guide | Taiwan brand high precison guide |
| Repeat accuracy | ±0.02mm |
| Programing | Manual programmin with teach pendant |
| Control system | Control board |
| Program storage | It can store one thousand sets of processing data and a single processing file can occupy up to 3M storage space (five thousand processing points) |
| File storage space | Handheld box 256M, offline card 32M, single processing file up to 3M storage space (100,000 processing points) |
| Document support | CAD |
| Iron Tin cleaning | Air cleaning/pneumatic |
| External interface | USB+RS232 |
| Soldering method | Point/drag soldering |
| Weight | 85kg |
| Machine dimension | 680*585*800mm |
Application
The automatic soldering machine is mostly used in the electronics
manufacturing industry. It is mainly used for process processes and
solder processing that are difficult to achieve in reflow soldering
and wave soldering. It is especially suitable for mixed circuit
boards, heat sensitive components, and sensitive devices in the SMT
back-end process. Welding, widely used in PCB board welding line,
charger plug welding, connector soldering, DC end tin, LED light
strip connection and other fields. Automatic soldering robots
replace manual soldering to improve work efficiency and improve
solder quality.Suitable for automotive electronics, digital,
electronic products, LCD, circuit board and other production
industries, connectors, RJ / network transformers, cable, FPCB
welding, COF welding, computer motherboards, CABLE, speakers and
motors Quality welding industry.
