8-104mm PC/PS/PET SMD Component Counter With Cold/Hot Sealing Cover
Tape
Introduction

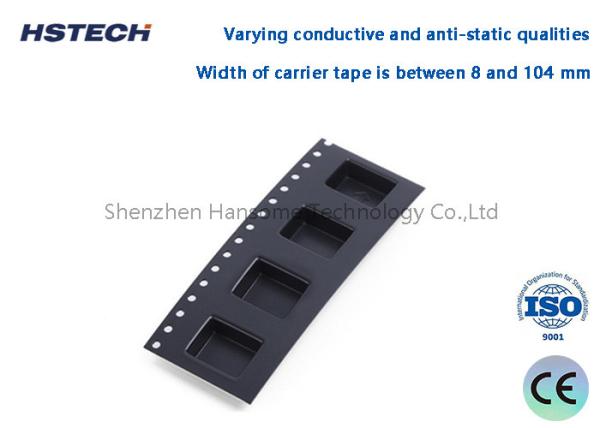

The embossed carrier tape are made of polystyrene, polycarbonate
and PET. Carrier tapes with varying conductive and anti-static
qualities to suit different components applications.The Carrier
tape has pockets that are shaped to match the contours of the
component to be carried. The width of carrier tape is between 8 and
104 mm, we also can custom for customers based on their demand.
Carrier tape specification
| Name | Carrier tape |
| Material | PS,PC,PET |
| Type | Conductive(antistatic)and non-conductive(non-antistatic) |
| Color | Black, Transparent |
| Width | 8-104mm |
| Thickness | 0.3-2.0mm,also customized for customers |
| Application | Smd components, electronic parts, hardware parts |
| Meter for per reel | According to the components |
| Cover tape | Cold sealing/hot sealing options |
The whole packing reels including the carrier tape, cover tape and
external reell, customers use the manual or automatic tape and reel
machine to pick the components into the carrier tape, at the same
time use the cover tape to cover the components tightly to protect
and fix the components in the tape, at last packing to a whole
reel.
Carrier tape size and it matched cover tape
Each carrier tape has it matched cover tape, the cover tape has the
cold sealing and hot sealing options during the components
packing,also the cover tape has the ESD options. Below is the
dimension of the carrier tape and it matched cover tape diagram.
| Carrier Tape(mm) | 8 | 12 | 16 | 24 | 32 | 44 | 56 | 72 | 88 | 104 |
| Cover Tape(mm) | 5.4 | 9.3 | 13.3 | 21.3 | 25.5 | 37.5 | 49.5 | 65.5 | 81.5 | 97.5 |
Reels
We also manufacture reels by injection moulding. They are made of
polystyrene in different sizes and designs. We can also produce
them in anti-static or conductive options under the requirements.
Application
The embossed carrier tapes are widely used in the surface
packaging, carrying and transmission of the surface mounting
equipments,for example, the mini PCB , IC ,LED chip, connectors,
diodes, dynatrons, resistors, conductors, capacitors, fuses,
switches, relays, resonators, radome, socket component,etc.
We supply high quality embossed carrier tapes and custom carrier
tapes according to customers's demand.
If you need a carrier tape to allow parts to be placed and sealed
to go onto a pick and place system, then we have options for you.
