Double Platform Cutting With Broken Knife Detection Inline PCBA
Router Machine
Introduction
This machine is a inline automatic PCBA routing machine, using
shank Tungsten steel milling cutter as the spearating tool, work
with customized fixture to fix the PCBA, also clear up the dust
with a dust collector after cutting, ESD belt to transport to
downstream device.
Features
1, Vacuum pick and place the PCBA.
2, Bottom cutting.
3, Double platform cutting.
4, With broken knife detection.
5, Connect the automatic production line.
6, SPC statistics function and match the ERP system.
7, Can be equipped with automatic tool change, explosion-proof
function of vacuum cleaner and air volume monitoring function.
Specification
| Model | ARX-811 |
| Max PCB size | 260x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| Transmission height | 900±50mm |
| Transport direction | Left to right |
| Transportation speed | 1500mm/s(max) Adjustable |
| Loading mode | Section-type transportation guide rail |
| Rail width adjustment | Automatic |
| Communication interface | SMEMA |
| PCB positioning | Fixtures positioning |
| Picking system | Vacuum suction pick up |
| Cutting spindel/speed | 60,000 rpm/min, Germany brand(optionnal 100,000 rpm/min, Germany
brand) |
| Cooling type | Self cooled type |
| Automatic tool change | optional |
| Break knife check | Yes |
| Separating speed | 5-100mm/s |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right side ratation, shank Tungsten steel |
| Repeat positioning accuracy | ±0.1mm |
| Coordinate moving speed | 1000mm/s |
| Out plate type | ESD belt transportation / batch panel forwardrding unit |
| Waste collection | Waste cupboard collection |
| Procedure programing | GERBER drawing import /editing program through visual system |
| Air supply | 5-8 kg/cm³ |
| Power supply | AC380V, 50/60Hz, 3KW |
| Machine size | 1500x850x1600 mm |
| Weight | Appro. 800kg |

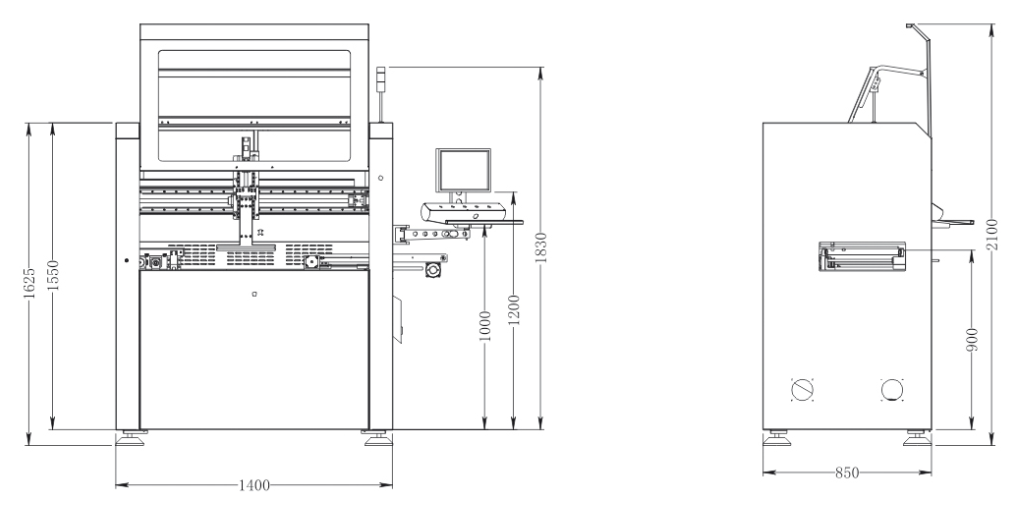

Machine size
Details
Bottom size dust collector.
Excellent CCD system with imaging camera, moritex lens and
measurement - level light source, to support machine calibration,
compensation and positioning, with great stability and
anti-distrubance capacity.
Omniponent vacuum suction chuck for picking, placing , unloading,
and production.
Composite unloading system, used the ESD antistaic belt to
transport the separated product on the top side, and the waster is
transported on the bottom side, save much space by this method.
