Standard Configuration High Speed Germany Sycotec Spindle Ultra Low
Working Noise Offline PCB Router
Technical Details
| Model | RM-288 | RM-388 |
| Structure | Single Spindle,dual work platforms |
| Machine Size(mm) | 1000*1200*1550 |
| Gross Weight | 700kg |
| Dust collector size(mm) | 625*600*1600 |
| Dust collector power | 3HP/2.2kw |
| Dust collector Weight | 130kg |
| Dust Collection method | Bottom collection |
| Work platform size | 300*400mm |
| Platform driving type | Double rotary platform,precision slicer with 3phase motor inverter |
| Driving system | X/Y/Z axis driven by servo motor,W axis driven by three phase motor
frequency inverter |
| Routing Spindle | 5000~50000rpm,auto cooling | 5000~60000rpm,auto cooling |
| Cutting speed | 1-100mm/s |
| Cutting accuracy | ±0.05mm |
| Repeat accuracy | ±0.02mm |
| Axis moving speed | 800mm/s |
| Z axis moning method | Screw driven,dual guide |
| Router kit | milling cutter,φ0.8~φ3.0 left rotation,Shank Tungsten Steel |
| Tool life control | Software program control |
| Active protective function | safty light curtain |
| Security door | Manual door |
| Error alaum | Yes |
| Program method | Self programing,camera controlled by keyboard and mouser |
Product Overview
PCB Router,also called automatic pcb cutting machine, with high
speed spindle drying milling kit to cut high density pcba andother
material substrate.
Features
Super Vision System
Using high resolution CCD camera allow the user to edit the cutting
path easily with it's automatic calibration feature resulting to a
very accurate cutting operation.
Movement System
The X,Y and Z axis are made of grinding grade precision ball guide
screw and driven by AC servo motor, achieve a good and stable
movement performance, with frequency up to 1K Hz high speed
response time and self adopting shock reduction filters.
Innovative Hanging Router Kit
The design of the driving shaft located in the center, and slave on
both sides, which ensure the stability and accuracy,results to a
harmonious structure and compacy size.(50% smaller than industry
standard).
Rotary workbench structure
The workbench design is driven by a high pulling torque
segmentation(180degree),provides more precision and stability than
cylinder driven machines workbenches.This innovative rotary
workbench design also allows simultaneous operation of defferent
cutting algorithms on both the A and B workbench,thereby reducing
changeover idle capacity and maximizing productivity.
Dust collection system
The dust collection system and antistatic blower mantains the
system clean during operation,ultra low noise.
Blade management
Allowing the cutting blade setup by stages greatly reduces the cost
for consumables.
Cutter System
The milling cutter is driven by a high speed spindle with the
advantages of a reduced cutting force, high accuracy,low noise and
suitable for all the curve pcbs,like round,straight line,L or U
type,squares and arc shapes.
Self recovery diagnostic system
The self diagnostic system allows easy troubleshooting of
malfuctions during production and reduces downtime.
Machine drawing
Friendly Operating System
Windows7/10 English version operating system,simple for debugging
and operation.
Product Overview
PCB Router,also called automatic pcb cutting machine, with high
speed spindle drying milling kit to cut high density pcba andother
material substrate.
Advantages

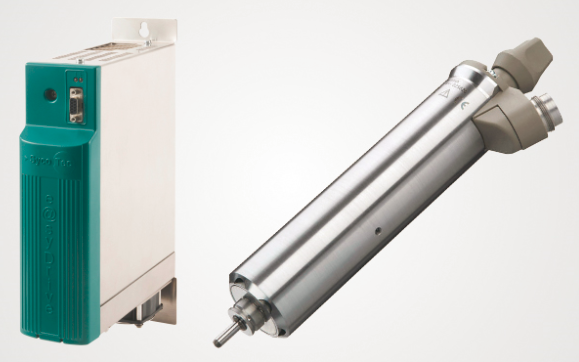

1,Standard configuration high speed Germany Sycotec spindle
2, Ultra low working noise(less than 75dB)
About Packaging
