Double Platform Cutting Bottom Cutting Vacuum Pick And Place The
PCBA Inline PCB Separating Router
Introduction
This machine is a inline automatic PCBA routing machine,the PCBA
fixed with jig for automatic bottom side routing, and after routing
the machine use the nozzle suction to pick and place the PCBA with
jig together, it used for separating the stamp hole, curve PCB, and
other irregular connected PCBs.
Technical Details
| Model | ARX-811 |
| Max PCB size | 260x340mm |
| Min PCB size | 50x50mm |
| PCB thickness | 0.4-6mm |
| Transmission height | 900±50mm |
| Transport direction | Left to right |
| Transportation speed | 1500mm/s(max) Adjustable |
| Loading mode | Section-type transportation guide rail |
| Rail width adjustment | Automatic |
| Communication interface | SMEMA |
| PCB positioning | Fixtures positioning |
| Picking system | Vacuum suction pick up |
| Cutting spindle/speed | 60,000 rpm/min, Germany brand(optional 100,000 rpm/min, Germany
brand) |
| Cooling type | Self cooled type |
| Automatic tool change | optional |
| Break knife check | Yes |
| Separating speed | 5-100mm/s |
| Cutting accuracy | ±0.05mm | |
| Milling kit | φ0.8~φ3.0 right side rotation, shank Tungsten steel |
| Repeat positioning accuracy | ±0.1mm |
| Coordinate moving speed | 1000mm/s |
| Out plate type | ESD belt transportation / batch panel forwarding unit |
| Waste collection | Waste cupboard collection |
| Procedure programming | GERBER drawing import /editing program through visual system |
| Air supply | 5-8 kg/cm³ |
| Power supply | AC380V, 50/60Hz, 3KW |
| Machine size | 1500x850x1600 mm |
| Weight | Appro. 800kg |
Features
1, Vacuum pick and place the PCBA.
2, Bottom cutting.
3, Double platform cutting.
4, With broken knife detection.
5, Connect the automatic production line.
6, SPC statistics function and match the ERP system.
7, Can be equipped with automatic tool change, explosion-proof
function of vacuum cleaner and air volume monitoring function.
Machine drawing
Bottom size routing and dust collector
Excellent CCD system with imaging camera, moritex lens and
measurement - level light source, to support machine
calibration,compensation and positioning, with great stability and
anti-disturbance capacity.
Omnipotence vacuum suction chuck for picking, placing , unloading,
and production.

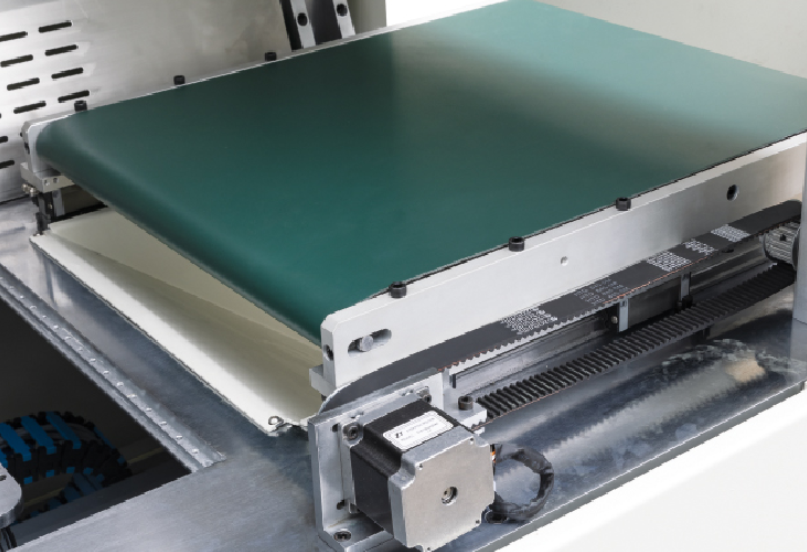

Composite unloading system, used the ESD anti-static belt to
transport the separated product on the top side, and the waster is
transported on the bottom side, save much space by this method.
