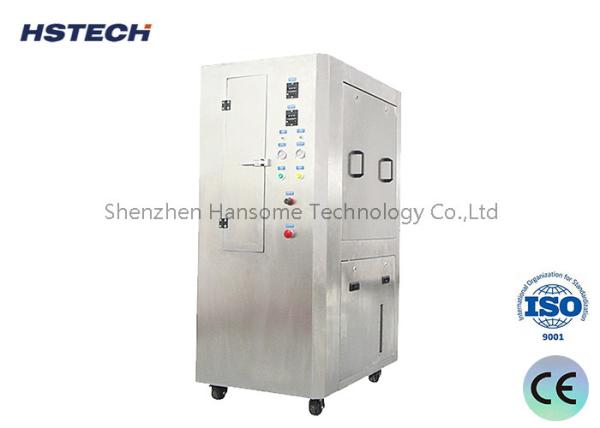

Side Air Dying Design Good Reliability Stainless Steel
CabinetPneumatic SMT Stencil Cleaner
This machine serve for the electronic manufacturing, it used to
clean stencil,screen print,mesh, copper screen,micro screen and
crystal disk,also the misprinted circuit board ,fixture, etc.
This equipment complete pneumatic operating without fire risk, no
electricity, very safe. Ergonomically in design. Cleaning and
drying process can be easily control with one-button operation. The
whole cleaning and drying process powered by air compressor,
cleaning solvent recycle using, low consumption.
Technical Details
| Cleaning stencil size | L740 × W740 × H40(mm) or customized |
| Machine dimension | L1000*W700*H1730(mm) |
| Max solvent capacity | 40L |
| Best solvent usage | 30L |
| Cleaning method | 360°rotary spray cleaning and high pressure air injection |
| Cleaning time | 2-4min |
| Drying time | 2-5min |
| Compressor | 0.4～0.6(Mpa) |
| Air consumption | 400～600( L/Min) |
| Outlet size | Φ125×H25(mm) |
| Filter system-level one | 10㎛ (Filter impurities and labels) |
| Filter system-level two | 5㎛ (Filter solder paste and rosin particle) |
| Filter system-level three | 1㎛ (Filter solder paste and rosin particle) |
| Machine weight | 200Kg |
Features
Used for cleaning solder paste, red gule,flux,etc
Stainless steel cabinet with good reliability and can resist any
hurt by acid and alkali cleaning chemistry.
Completely Pneumatic operating without fire risk, no electricity
,safe.
Side air dying design.
Humanized design, one button operation and automatic liquid feeding
and draining system, easy and convenient.
Changeable mode controller and fast plug-in design, convenient
maintenance.
Three level filter system, also with special design on air exhaust
can reduce cleaning chemistry consumption.
High precision isobaric double side rotary cleaning nozzle, high
cleanliness, steel mesh tension stable.
Using globe best quality parts, make sure the quality,stability,
and long life-span.
Cleaning object
Stencil , metal mesh,screen print mesh,copper screen,micro screen
and Crystal disk
Application
 |  |  |  |
| Avionics | High speed rail | Medical Electronics | Smart phone |
 |  |  |  |
| Automotive electronics | New energy | Communication base | High-end power |
